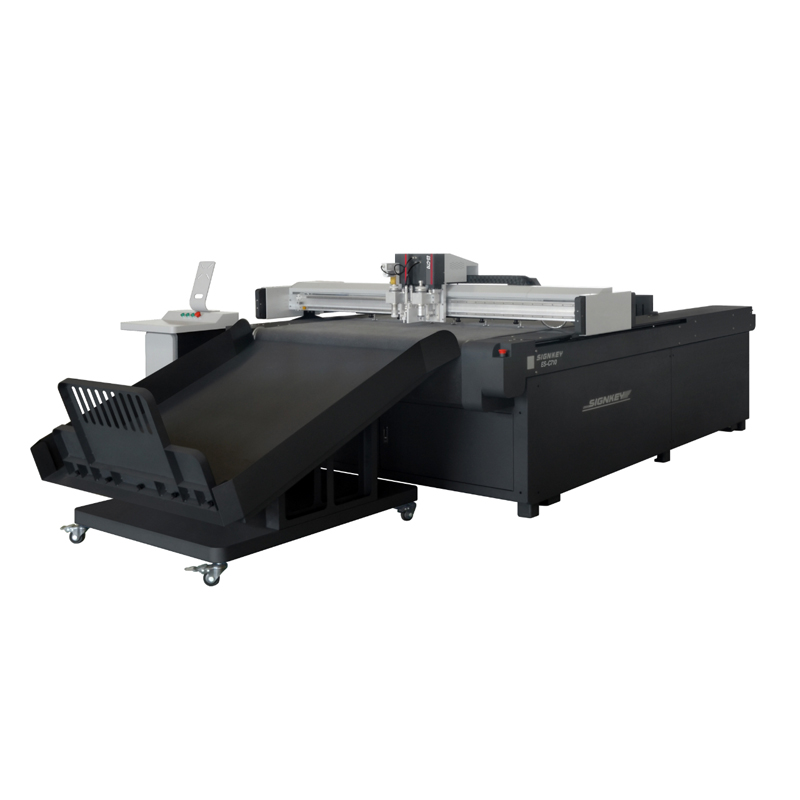

| Model | ES-C710 |
| Working Size | 750mm*1050mm（29.5"*41.3") |
| Max.Media Thickness | 20mm(0.79") |
| Stack Height | 160mm(6.3") |
| Feed Capacity | 20mm(0.79") |
| Max.working Size on X Axis | 750mm(29.5") |
| Max.Working Size on Y Axis | 1050mm(41.3") |
| Max.Speed | 1200mm(47.2")/s |
| Material Loading Method | Movable Suction Cups |
| Material Fixing Method | Vacuum Table |
| Applicable Media | Cardboard,Folding Carton,Paper ,Foam |
| Rubber Materials,Flexographic Plates,Leather | |
| Twin-wall Sheets,Plastics,Vinyl Stickers | |
| Reflective Sheetting | |
| Industry Solutions | Signage,Display,Corrugated Packaging |
| Leather Goods,Sample making | |
| Protective Packaging Production | |
| Tools Included | Electric Oscillating Tangential Tool-EOTT |
| Cerasing Tool-CT | |
| V-cutting Tool-VCT | |
| Drag Tool-DT | |
| Cutting Blade for Half Cutting /Kiss Cutting | |
| Double Cutting Blade for Performation Cutter | |
| Plotter Pen | |
| Tools for Option | Electric Wheel Knife Tool-EWKT |
| Punching tool | |
| CCD Camera | 5 Megapixels |
| Drive | AC Servos |
| Transmission | Rack & Pinion on X,Y |
| Ball Screw on Z | |
| Linear Guideways on X,Y,Z | |
| Repeatability | 0.1mm/300mm(0.0039"/11.8") |
| IOS | Win11/10/8/7 |
| Controller | Signkey CCD Control System |
| Language:English/Chinese | |
| File Formats Available | .dxf,.pdf,.plt,hpg,.nc,.u00,.jpg,.png,.tif |
| .gif,.dut,.lys,.gif,.lys,.ncf,.iso,cut,.txt | |
| Cutting File Transmission Methods | USB.Network |
| Power Input Standard | AC 220V,Single phase,50Hz |
| Power Input for Option | AC 110V,Single Phase,60Hz |
| Power Consumption | 22A,5kw |
| Air Requirements | Dry Air 0.4-0.8Mpa |
| Air Compressor | For Option |
| Floor Plan W-L-H | 2500*4231*1361mm(98"*165"*54") |
| Package Size W-L-H | 2100*3300*1600mm(83"*130"*63") |
| Cross/Net Weight | 600Kg/500Kg |
