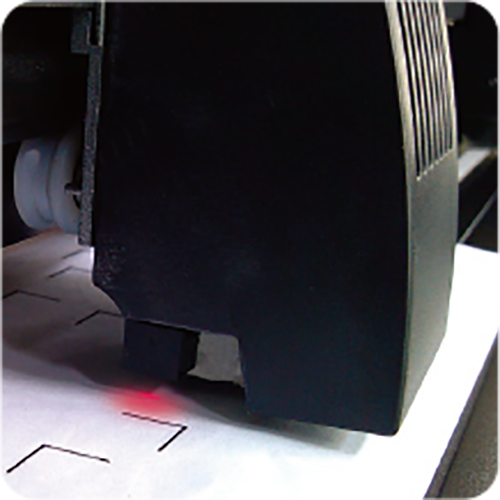

 | Powerful Accurate Alignment System(AAS), can detect the positioning marker, and complete precision contour cutting automatically(optional function). |

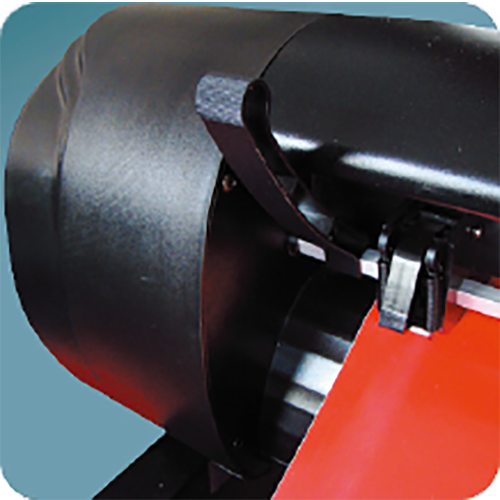

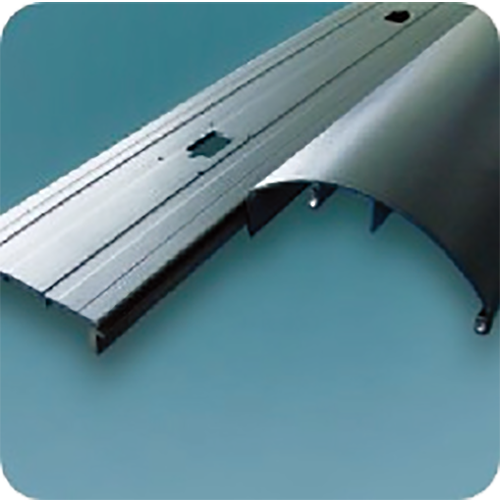

 | The whole aviation aluminum molding body makes the function under high-speed working more stable. |

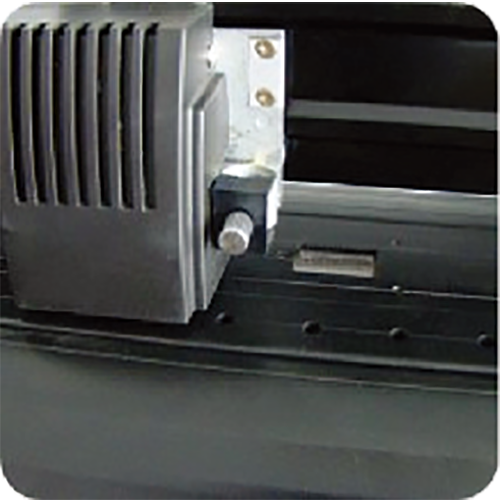

 | The whole-steel linear bearing pen vehicle has bigger cutting pressure and can be adjustable easily, with good heat dispersion. |
 | The worldwide first technology Draws (or Cut) with negative direction function, saves more cost and brings more value for the user. |
 | Built-inside closed compensation, and acute-angle compensation can be used directly from Coreldraw, CAD, or other design software. |

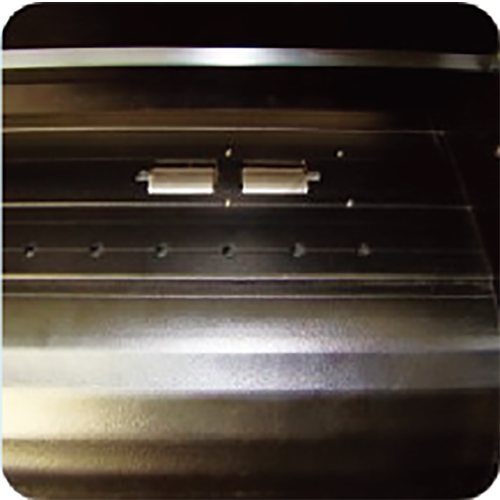

 | The imported punctures paper-roll with more friction force and more working life, and without any possible deviation after long media cutting. |
 | With a quicker operating speed, the DSP processor subdivides the constant flow with low noise and more stable system operation. |
 | With the standard USB connection, the data transmission is stabler. Meanwhile, the U flash driver can used for output directly. |

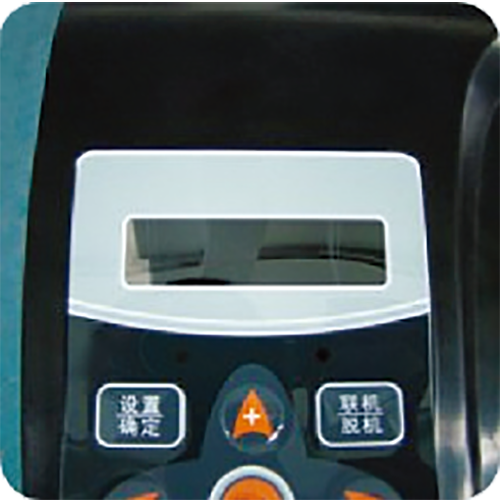

 | The LED display with light backside, is also easily changed between English & Chinese, with more simple operation. |
 | Adjustable double pressure on the roller, cut hard materials easier. |

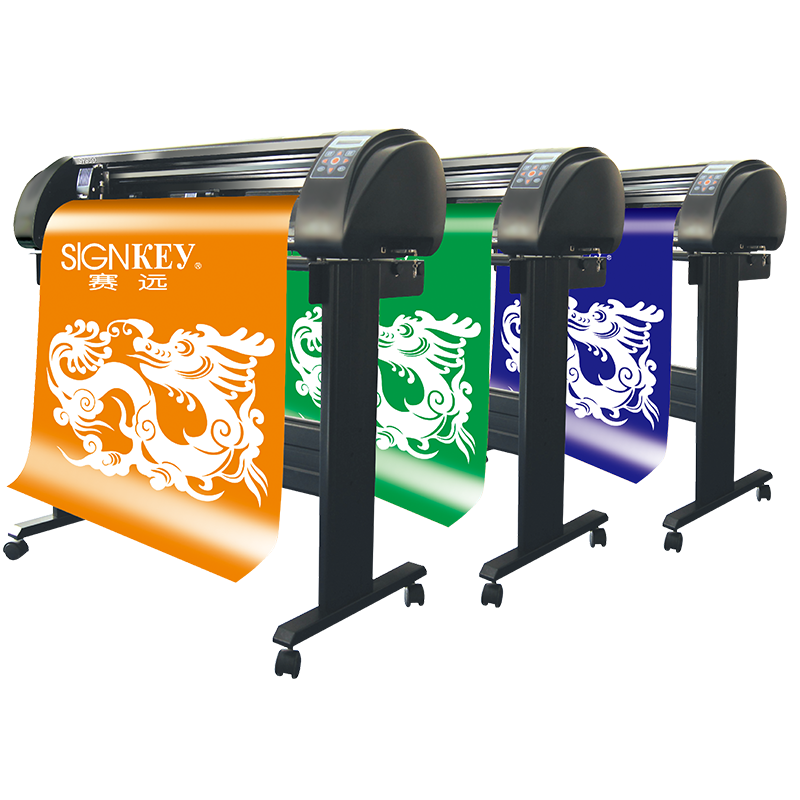

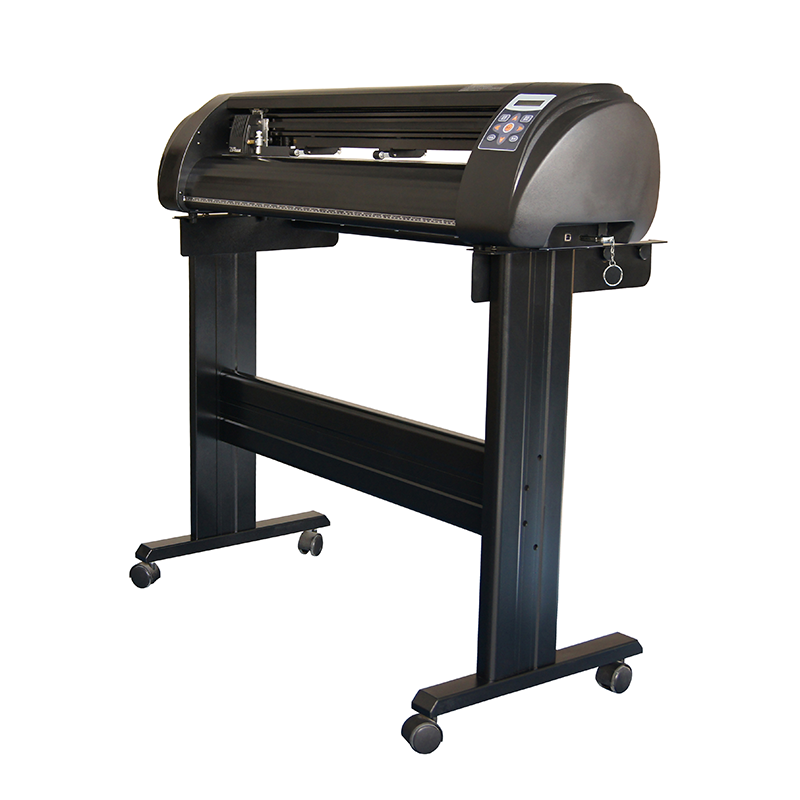

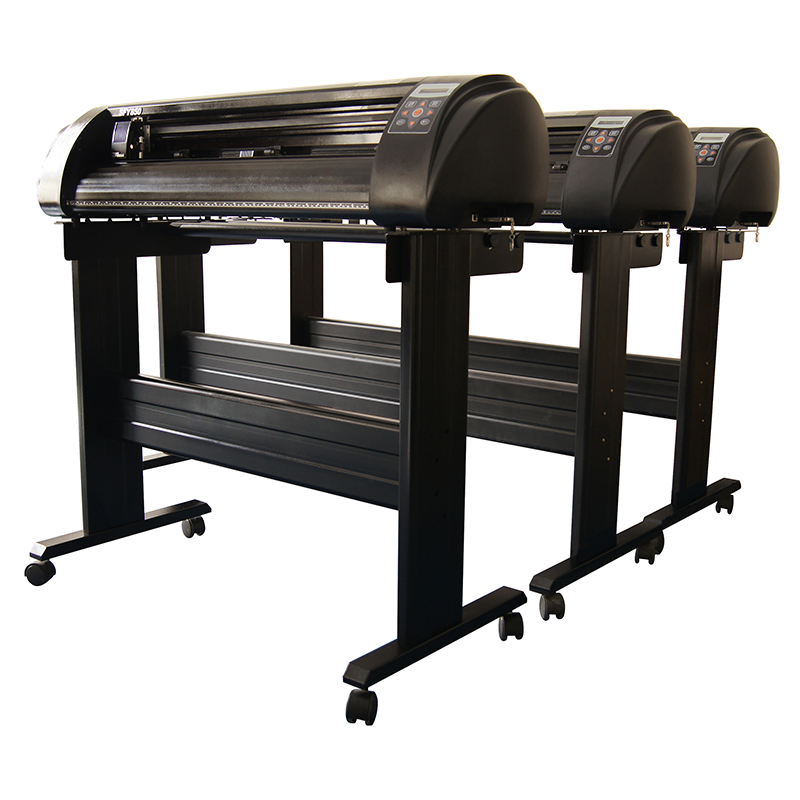

| Model | SKA-720(H) | SKA-850(H) | SAK-1100(H) | SKA-1350(H) |
| Max.Material Width | 720mm | 850mm | 1100mm | 1350mm |
| Max.Cutting width | 620mm | 750mm | 1000mm | 1250mm |
| Speed | Max speed: 800mm/s | |||
| Knife Pressure | 10-600g | |||
| Memory | Standard:512k**2M for option | |||
| Mechanical Resolution | 0.0254mm/step | |||
| Repeating Precision | 0.127mm | |||
| Interface | USB, COM Port | |||
| Language Format | DM/PL, HPGL | |||
| Power | AC160V-240V,50-60HZ | |||
| Driving System | Stepper | |||
| Working Environment Temperature | 0-35℃ | |||
| Working Environment Humidity | 5%-95%, No coagulate water | |||
| Display | LED in Chinese or English | |||
| Net/Gross Weight | 20/28kg | 25/35kg | 35/45kg | 45/55kg |
| Packing Dimension | 1130x410x360mm | 1270x410x360mm | 1520x410x360mm | 1780x410x360mm |
