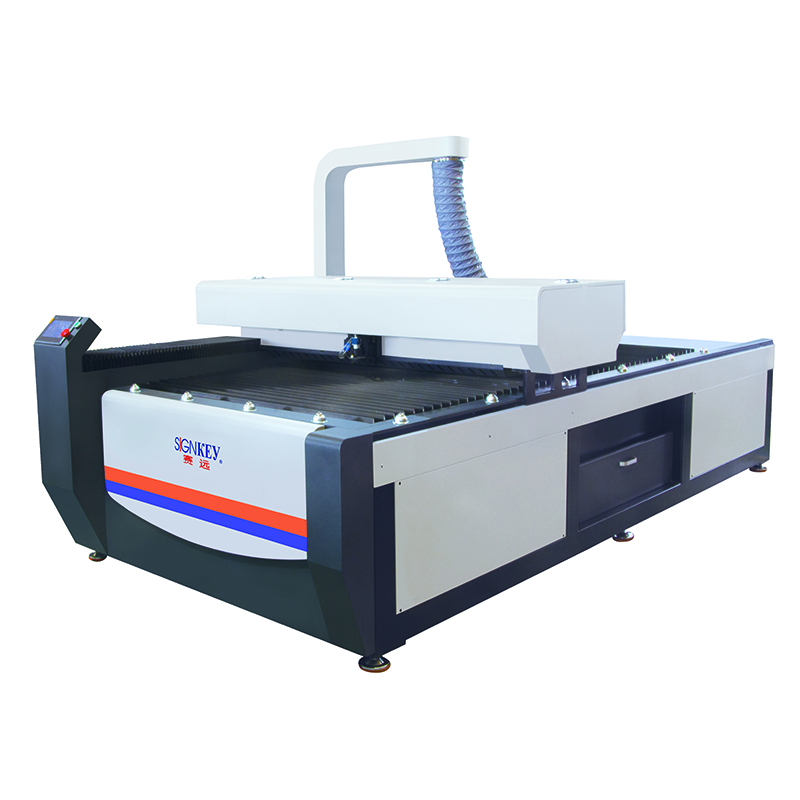

This co2 laser cutter engraver is suitable for industries such as advertising signs and glass crafts, craft gifts, clothing, leather, craft paper-cutting, and toys.
Materials can be processed: Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglas, Plywood, Rubber, Stone, Wood, Crystal.
| Model | L1-300 | L1-500 |
| Working size | 1300mm *2500mm*70mm | |
| Working table | 1300mm*2500mm | |
| Tube power | 300W | 500W |
| Laser head | Nonmetal cutting | |
| Working table | Aluminum sheet | |
| Working speed | 0-60m/min | |
| Moving speed | 25m/min | |
| Contorl system | CCD Xinduo Wei or Ruida | |
| X（400W） Y（750W）Servo motor | Servo motor | |
| Motor of Z axis | Stepper motor | |
| Transmission | Taiwan PMI Ball screw transmission | |
| Cooling type | 1.2KW Industrial cooler CW-5300 | Industrial cooler CW-6000 |
| Cooling | Auto control | |
| Exhausting system | 1.5kw | |
| Lens | Mirror 38.1,focus 25 | |
| Power supply | 220V 50/60Hz | |
| Repeated precision | ±0.02mm/m | |
| File format | DXF、AI、PLT、DST、DSB | |
| External size | L3683mm*W2141mm*H1882mm | |
| Machine watt | 6KW | 7KW |
| Net gross | 950KG | 1150kg |
