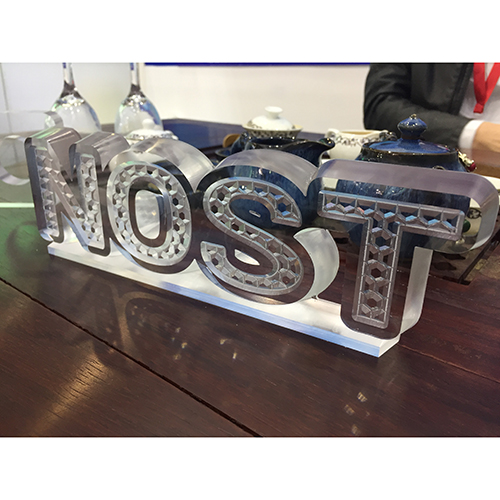

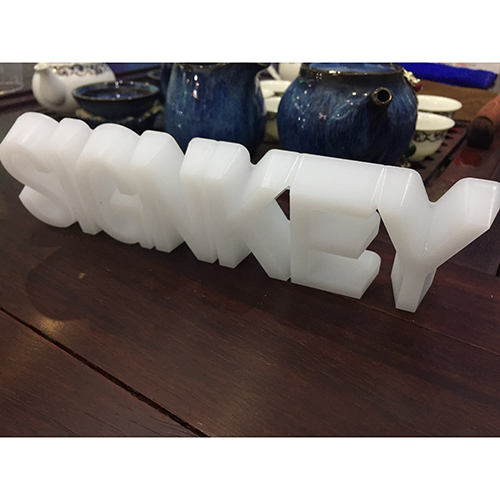

Nonmetallic material engraving and cutting, soft metal cutting, solid wood and non-painting door processing, advertising making, mould manufacturer, etc.

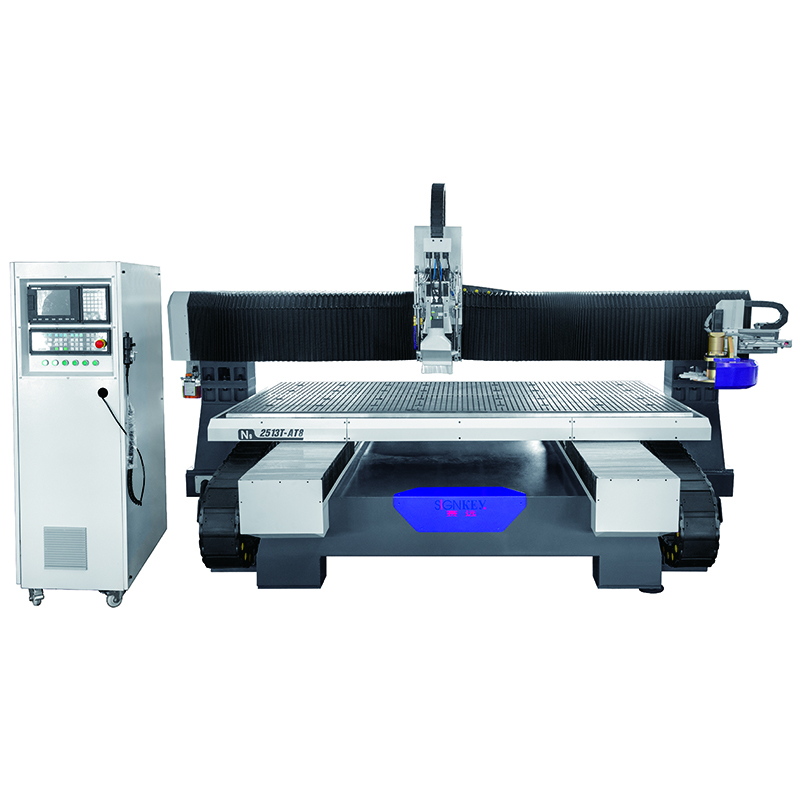

| Model | N9-2513ATC |
| Table Size | 2600mmx1400mm |
| Working Size | 2500mmx1300mmx200mm |
| Max.Material Height | 200mm |
| Spindle Power | Italy 9KW/380V ATC air cooling |
| Psi/Cfm | 90Psi/16Cfm |
| Tool Holder | ISO30 ,ER32 |
| ATC Tool Station | Stepless Speed changing rotary tool station |
| SpindelRPM | 0----24000rpm |
| Control System | Taiwan Syntec |
| Tool Diameter | 3.175mm4mm6mm8mm12.7mm |
| Transmission | Ball Screw for Z;Double Ball Screw for Y |
| X,Y,Z Rails | Imported Linear Rails,Z25mm,XY30mm |
| Mechanical Structure | Industrial Square Steel Pipe,Iron casting movable talbe |
| Repositioning Accuracy | <0.03mm/300mm |
| Max.No-loading Speed | 45000mm/min |
| Driver | Japan Yaskawa AC Servo |
| Power Supply | 380V,50-60Hz |
| File transfer | USB or Net-work |
| Table Top | Vacuum Table |
| Vacuum Pump | 7.5KW Air cooling |
| File format | HPGL or G Code |
| External Form Size | 2100*3460*1950mm |
| Net/Gross Weight | 2000Kg/2500Kg |
