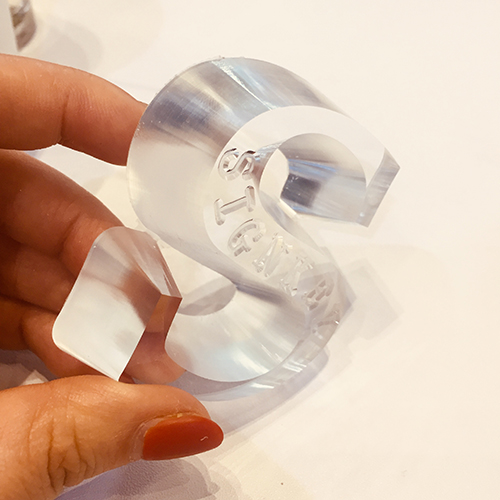

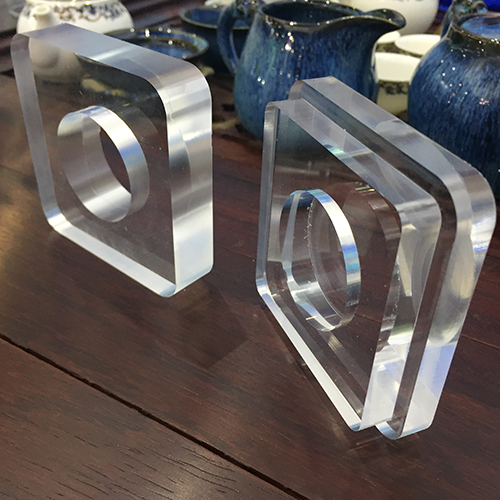

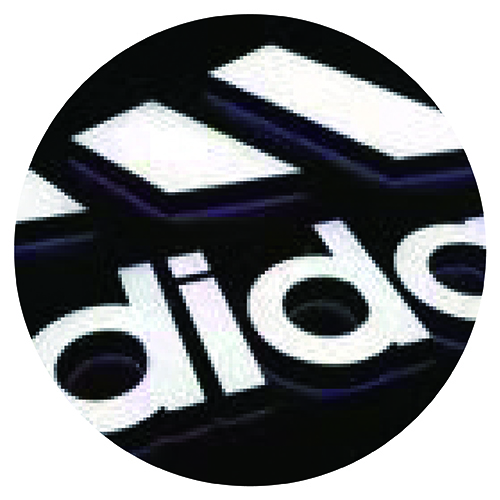

Polished Cutting for Aluminum, Copper, Relief of Aluminum and Copper, Acrylic products and Processing of Various Composite Materials.

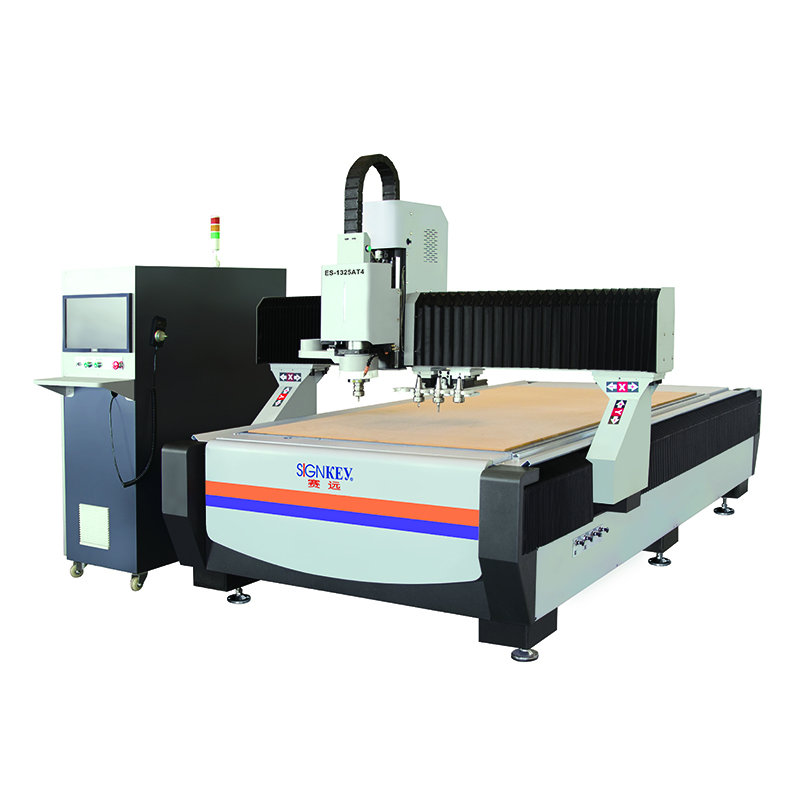

| Model | ES-1325AT4 |
| Table Size | 1310x2940mm |
| XYZ Working Size | 1300x2500x250mm |
| Max. Material Height | 130mm |
| Spindle Power | 7.5KW380V ATC Water Cooling |
| Psi/Cfm | 0.6-0.8bar |
| Tool Holder | BT30,ER32 |
| ATC Tool Station | Linear 4 position |
| Spindle RPM | 0-24000rpm |
| Tool Diameter | Ø3.175,Ø4,Ø6,Ø8,Ø12.7 |
| Driver | Huichuan AC Servo |
| Control System | 2200A Taiwan LNC Controller |

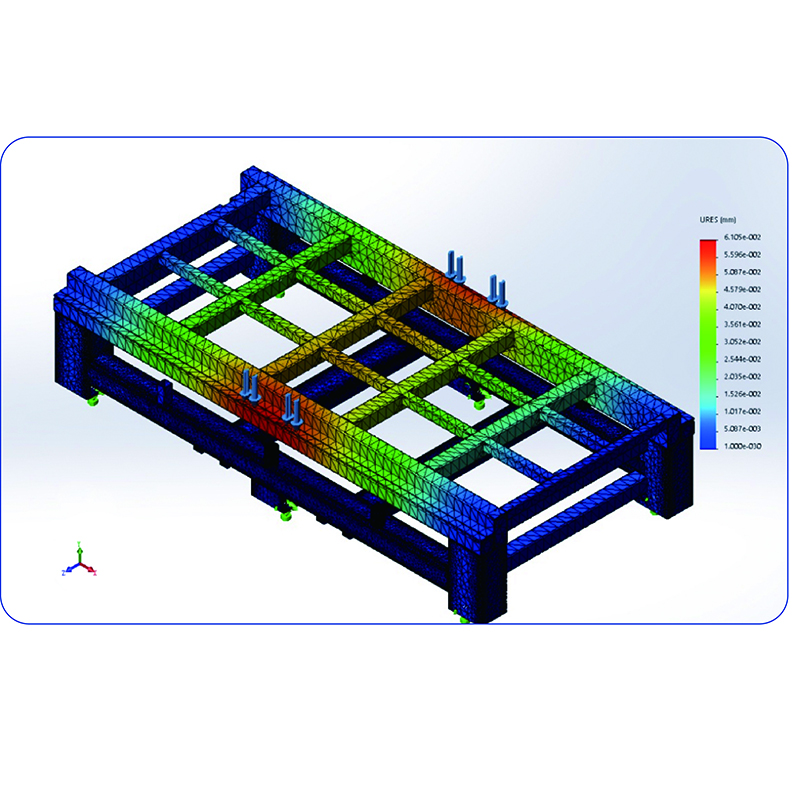

| Mechanical Structure | Industrial Square Steel Pipe |
| Transmission | Ball Screw for XYZ;Integral structure Double Ball Screw for Y |
| XYZ rails | Imported PMI Linear Rails |
| Max. No-loading Speed | 18000mm/min |
| Max. Engraving Speed | 15000mm/min |
| Positioning Accuracy | <0.05mm/m |
| Repositioning Accuracy | <0.02mm/m |
| Table Top | 4 districts Butterfly Valve Vacuum adsorption platform |
| Vacuum Pump | Air cooling 7.5kw(With silencer and pressure relief valve) |
| File Transfer | USB or Net-work |
| File Format | G Code |
| Power Supply | 380V,50-60Hz |
| External Size | 3490x2010x2100mm |
| Packing Size | 3600x2250x2100mm |
| Net/Gross Weight | 1500/1900kg |
