Contour Cutting CNC Router for UV Flatbed Printers

1. Automatic keying and outline generation, saving the user a lot of time.
2. Industrial grade bed with box structure, smooth running, low noise and high precision.
3. XY high-precision rack and pinion + linear guide for high precision and high load
4. Intelligent servo drive, stable and efficient
5. Powerful: intelligent camera positioning for edge finding and cutting as well as 3D engraving, all in one machine

Availability:



Inquire

Product Description

Applicable Industries:

Applicable Fields. Spindle: cutting acrylic, woodworking, thick PVC, aluminum, copper and other soft metals, oscillating knife: cutting KT board, PVC (up to 7mm thick), leather, single layer cloth and other soft materials

ES-1325CCD-PVC-2

Technical Parameters:

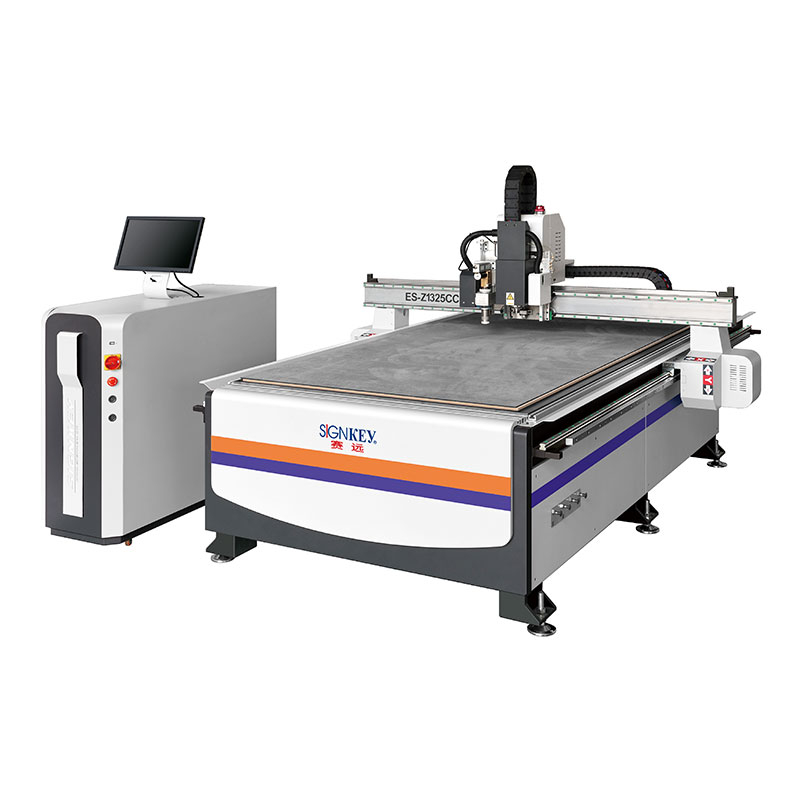

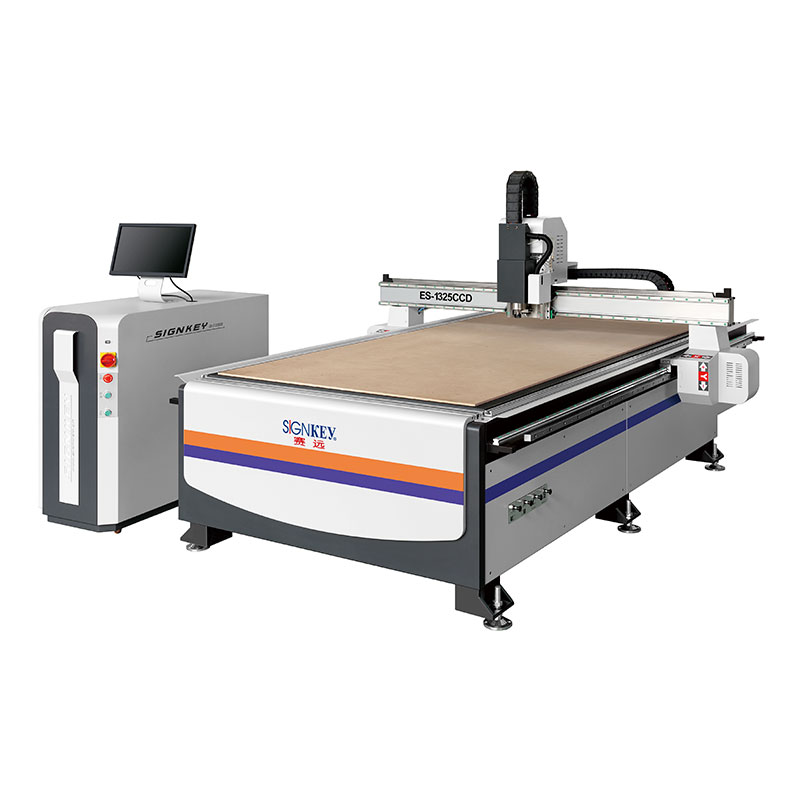

Model	ES-1325CCD	ES-Z1325CCD
Working size	1300x2500x170mm
Feeding height	150mm
Spindle power	Water cooling 3KW 40,000 RPM Spindle	Water cooling 3KW 40,000 RPM Spindle + Oscillating tool
Spindle rotary	0-40000rpm
Tool diameter	Ø3.175,Ø4,Ø6,Ø8
Driver	XY AC servo, Z-axis 400W AC servo A-axis 200W AC servo
Control system	Signkey CCD system
Mechanical construction	Industrial steel tube box construction
Transmission system	Z-Screw direct; X, Y-grinding rack + planetary gearbox
X, Y, Z guide rail	Linear guide
Repetition accuracy	<0.03mm/300mm
Max. no-load speed	90m/min
Data transfer	USB
Command format	HPGL or standard G-code
Power supply	AC220V or 380V,50-60Hz
Platform	Vacuum platform with clamping slot
Vacuum pump	7.5kw air cooling pump
Dust collector	High-powered intelligent vacuum system (optional)
Machine dimension	200031001650mm
Package size	215032502000mm
Machine Net/Gross Weight	Approx.1000/1200kg
