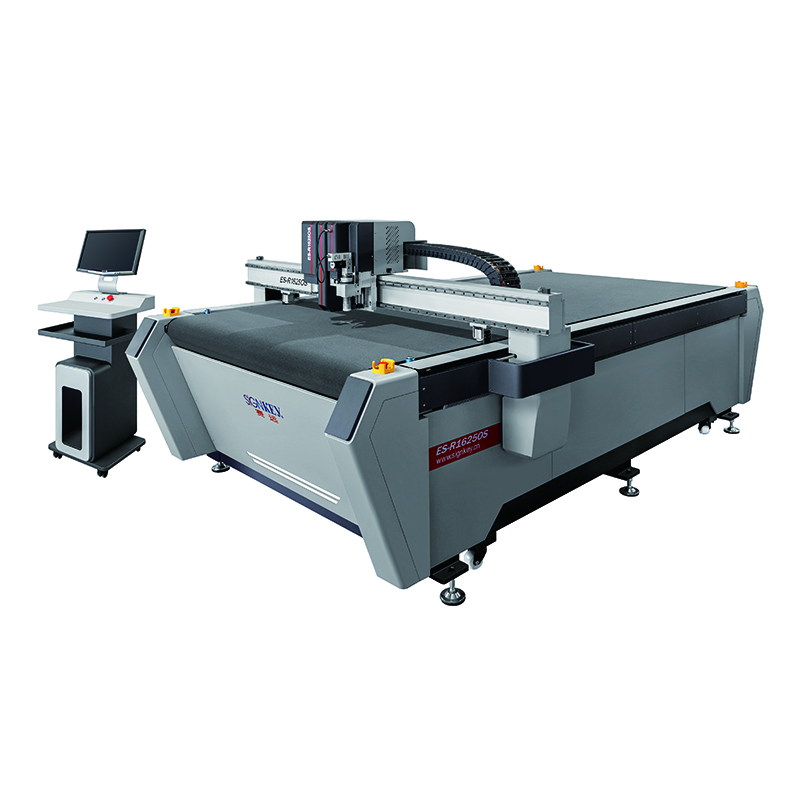

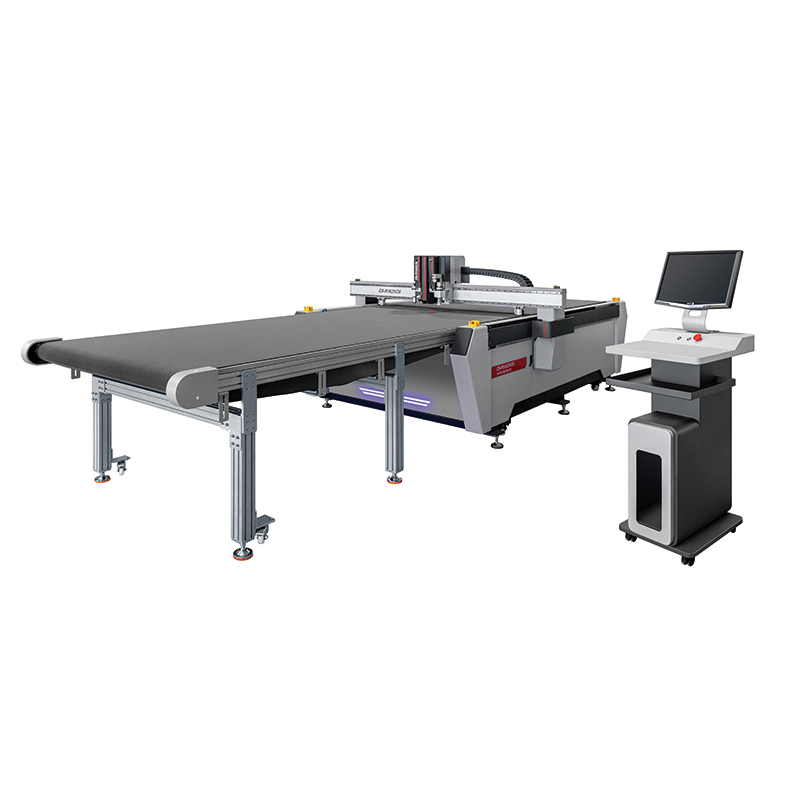

Flatbed Cutter

1. Independent Z-axis modular design, multiple combinations of functional tools: oscillating knife, drag knife, pneumatic knife, half cutter, round knife, pen, manual and automatic tool change spindle
2. Double vacuum table+gas storage device, strong adsorption force.
3. Rolling feeding table, automatic feeding and rolling cutting.
4. 12-axis control system with independent intellectual property rights, easy to upgrade and maintain. The network interface supports remote upgrades. Transmission with more efficiency and security.
5. Pixel industrial-grade camera, accuracy and speed.
6. Automatic generate contour function, which supports JPG, DXF, PDF, etc.
2D\3D engraving function, supports CDM\CAM software, and is in line with international standards.

Availability:



Inquire

Product Description

Standard Features：

Machine body: Industrial steel pipe frame, industrial tempering to eliminate welding stress, gantry is processed by processing center, make sure stable moving, low noise and high precision.

Transmission: XY high precision helical rack+linear guide, or belt transmission, to ensure high precision and high load.

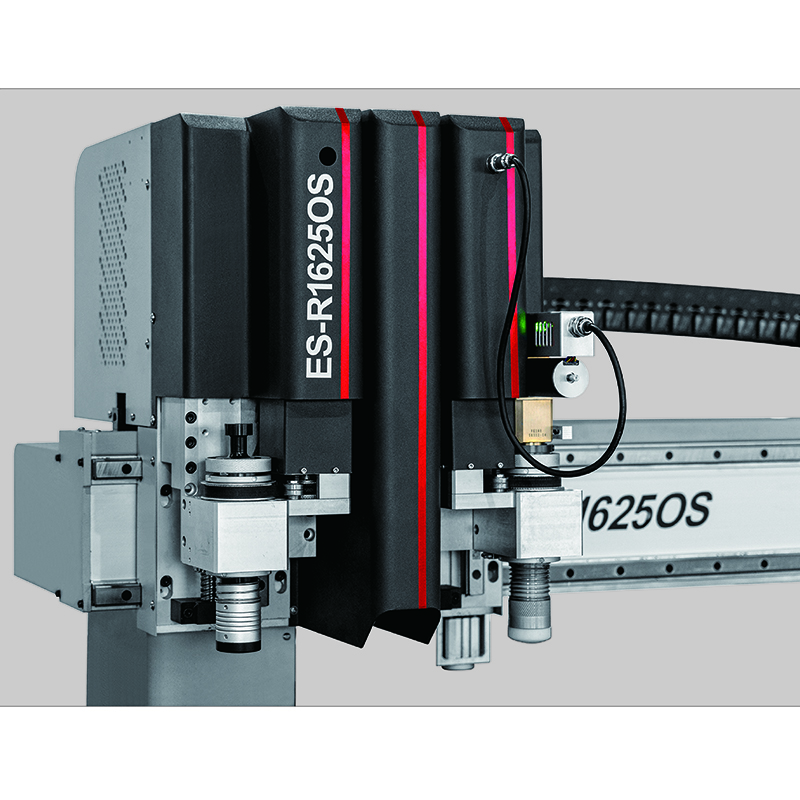

Machine headpiece: Independent Z- axis modular design, multiple combinations of functional tools to meet diverse operations.

Working table: Double vacuum table+gas storage device, the adsorption force is stronger,

Convey system: Rolling feeding table, automatic feeding and rolling cutting, the operation is more efficient.

Control software:12-axis control system with independent intellectual property rights, easy to upgrade and maintain. The network interface supports remote upgrades, and the transmission is more efficient and secure.

Camera -pixel industrial grade camera, scanning positioning accuracy and speed.

Software format: The software has an automatic generate contour function, which supports JPG, DXF, PDF, etc.; and has a 2D\3D engraving function, supports CDM\CAM software, and is in line with international standards.

Tools: Can be combined with various cutting and engraving tools: oscillating knife, drag knife, pneumatic knife, half cutter, round knife, pen, manual and automatic tool change spindle, multi-purpose in one machine, effectively saving costs for multi-purpose and varies material operations.

Exterior: Designed by a professional team, advanced structure, simple and generous exterior.

Applicable Industries:

By replacing different tools, this Flatbed Cutter Machine can achieve different applications.

Oscillating knife: KT board, PVC(less than 7mm), leather, single layer cloth, PP paper, car paste, reflective film, corrugated paper, card paper, grey board paper, soft composite material, etc.

Drag knife: flexible materials less than 5mm, such as paperboard, thin plastic, PP backing, rubber blanket, gasket, and imitation leather.

Pneumatic knife: polymer materials such as rubber, plastic, and leather.

Half cutter: adhesive sticker, car paste, reflective paste, magnetic paste half section cutting.

Round knife: Imitation leather, disablement fort, microfiber leather, flannelette, blended fabric, and other fabrics.

Pen: mark on the material.

Spindle: acrylic, MDF, insulating board, wood, thick PVC, aluminum, copper, composite material, and other hard-density material cutting.

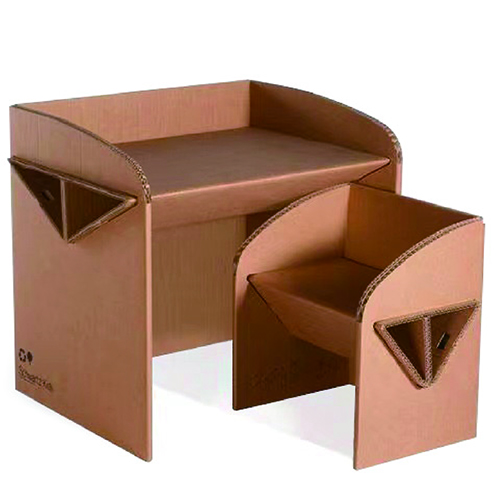

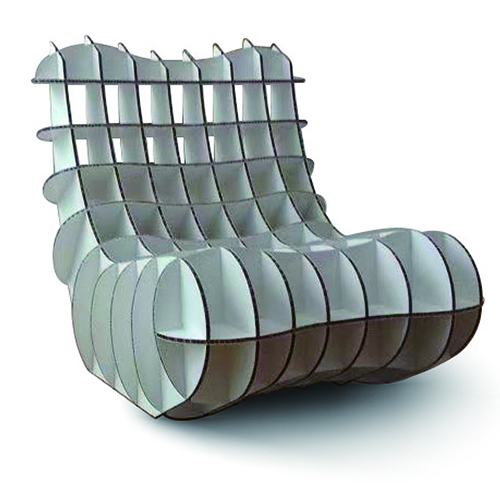

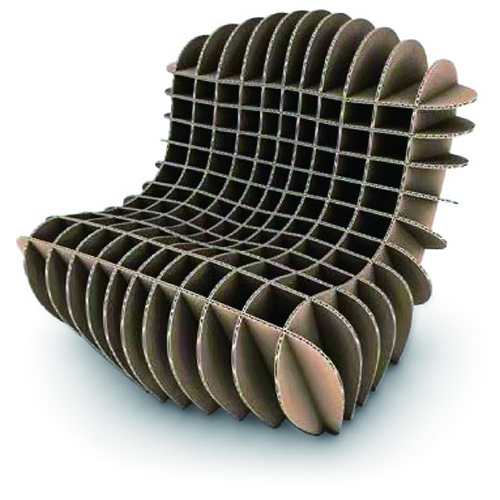

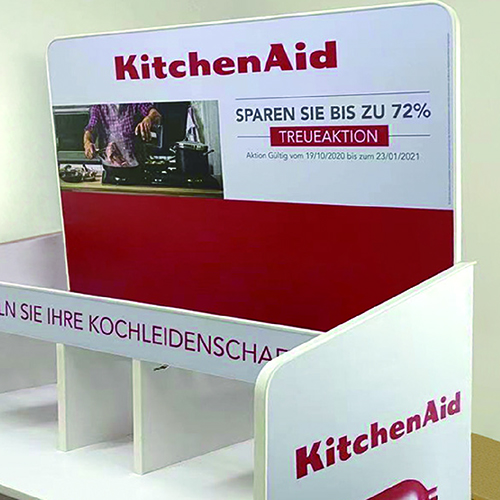

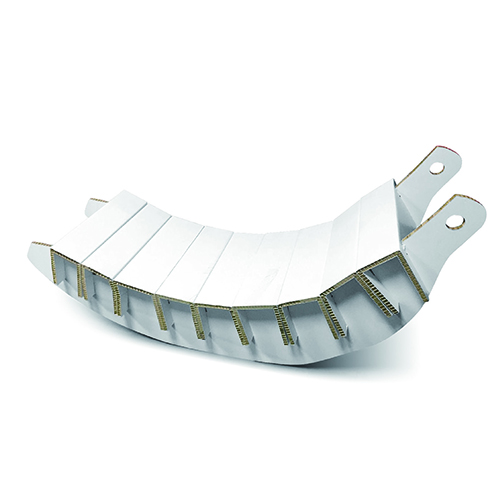

ES-R1625OS cutting sample display-3 ES-R1625OScutting sample display-5
