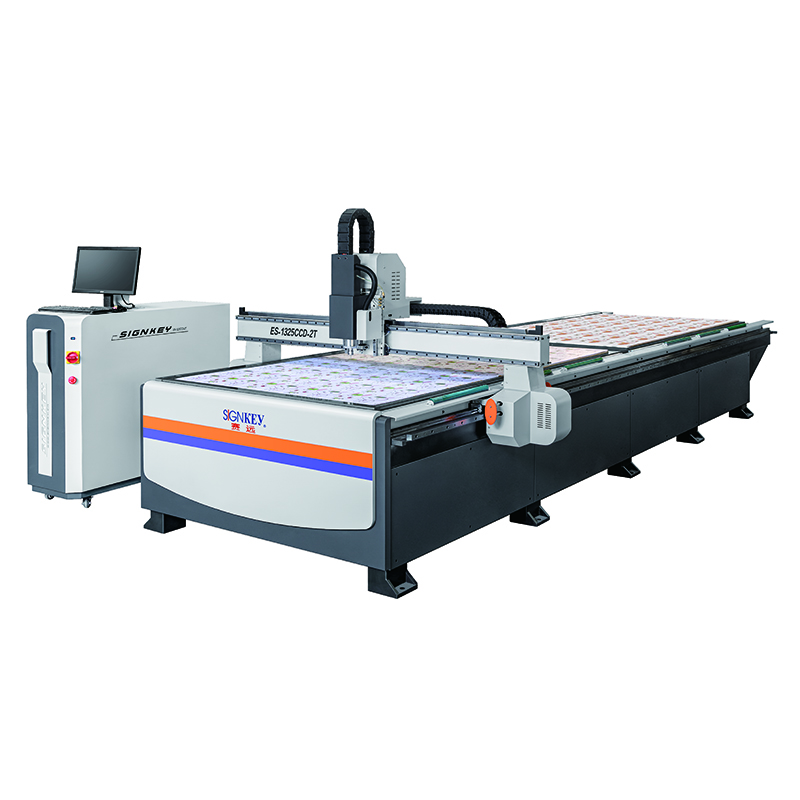

Two Tables - Contour Cutting CNC Router

Full AC servo motor speed: up to 2000mm/s
Spindle speed: 40000rev/min

Double table design
1. The machine works alternately, and the material collection and cutting are carried out at the same time.
2. The system can handle multiple tasks at the same time, batch import image files, automatically generate processing paths, guide images while working, and there is no need to queue up for single file import.
3. Equipped with a safety anti-collision device to provide safety protection for the operator.
4. The positioning device makes it quick and convenient to place the workpiece.
5. Less cost and space required. The efficiency of a single machine is equivalent to that of two machines.

Availability:



Inquire

Product Description

Standard Features:

Two tables design:
1. Efficiency doubled: machines work alternately, collecting and cutting at the same time, reducing the operator's ineffective waiting time
2. Simplify the complex: the system can process multiple tasks, batch import image files, automatically generate processing paths, guide the image while working, and eliminate the need to queue up individual files for import, thus eliminating the waiting time for file import.
3. Safe and reliable: The machine is equipped with a safety anti-collision device to provide safety protection for operators.
4. High speed and high precision: All AC servo motor, running speed up to 2000mm/s, spindle speed 40000rev/min, the machine runs smoothly.
5. Positioning device: Workpiece placement, is quick and easy.
6. Cost saving: The efficiency of a single machine is equal to that of two machines, and the purchase cost of a single machine is lower than that of two machines.
7. Save space: A single machine occupies less space than two machines.

Applicable Industries:

Spindle: Cutting acrylic, thick PVC, aluminum plate, copper plate and other soft metals

Oscillating knife: cutting KT board, PVC (thickness within 7mm), leather, single-layer cloth and other soft materials

Technical Parameters:

Model	ES-1325CCD-2T
Working size	1300x2500x170mm
Feed height	150mm
Spindle	water cooling 3.0kw/40000RPM
Spindle RPM	0-40000rpm
Tool Diameter	Ø3.175,Ø4,Ø6,Ø8
Driver	XY AC servo，Z 400W AC servo A axis 200W AC servo
Control system	SIGNKEY CCD system
Mechanical structure	Industrial steel pipe box structure
Transmission	Z-ball screw; X, Y-helical rack pinion + Planetary gearbox
X, Y, Z rail	linear rail
Repeatability	<0.03mm/300mm
Max. unload speed	90m/min
Data transfer	USB
Format	HPGL or G code
Power supply	AC220V or 380V,50-60Hz
Working table	vacuum table, with T slot
Vacuum pump	7.5kw air cooling pump
Dust extraction system	High-power smart vacuum system (optional)
Machine dimensions	200057001650mm
Package size	215060002000mm
Machine net/gross weight	about 1500/1700KG
