Cutting plastic signs on a CNC router can be tricky. If you're not careful, the heat from the process could cause the material to melt, ruining your project. Want to avoid melting and keep your cuts clean? With the right tools, settings, and beginner tips, you can master your routers in no time!
When it comes to CNC machining plastic, the type of material you choose can make or break your project. Cast and extruded plastics are two common options, but they behave differently under heat and pressure.
Cast plastics, like cast acrylic, are denser and more heat-resistant. This means they're less likely to melt or deform during machining.
Extruded plastics are more affordable but tend to soften faster under high temperatures, which can lead to messy cuts.
If you're working on a project that requires precision and durability, cast plastics are your best bet. They offer better machinability and produce cleaner edges.
Choosing the right plastic for your CNC router project depends on the application. Here's a quick guide to help you decide:
Property | Description |
Hardness and Strength | Ensures the plastic can withstand weight and impacts in specific applications. |
Chemical Resistance | Maintains integrity in harsh environments. |
Moisture Resistance | Ideal for outdoor use or humid conditions. |
Appearance | Perfect for aesthetic applications like signage or toys. |
Heat Resistance | Crucial for thermal exposure or electrical insulation. |
Budget | Ranges from affordable options like polythene to high-strength composites. |
For general CNC router projects, materials like cast acrylic, polycarbonate, and HDPE are excellent choices:
Cast acrylic is perfect for cutting acrylic signs due to its heat resistance and clarity.
Polycarbonate offers impact resistance, making it ideal for durable applications.
HDPE is a budget-friendly option that works well for less demanding tasks.
When it comes to cutting acrylic, selecting appropriate tools is crucial. The right CNC router bit can make all the difference in achieving clean, precise cuts without melting the material. For plastics like acrylic, bits with fewer flutes, such as single or double-flute designs, work best. These bits allow better chip evacuation, reducing heat buildup during the cutting process.

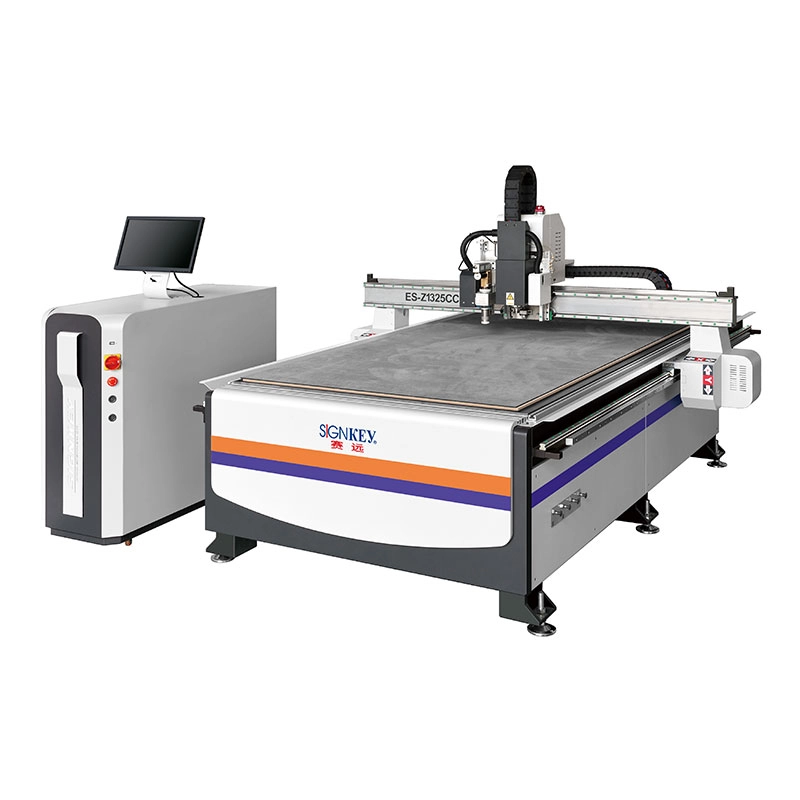

Choosing the right brand for your CNC router tools can significantly impact your results. Signkey, a trusted name in the industry, offers a range of high-quality tools designed for cutting acrylic and other plastics. Their CNC routers come equipped with advanced features like liquid-cooled industrial spindles and helical rack and pinion systems, ensuring precise and efficient cuts.
Here's a quick look at some features that make Signkey tools stand out:
Feature | Description |
Industrial-grade Bed with Box Structure | Smooth running, low noise and high precision |
Liquid-Cooled Industrial Spindle | Operates at variable speeds, perfect for different acrylic thicknesses. |
XY High-precision Rack and Pinion System | Ensures smooth and precise movements for high-quality cuts. |
CCD System | Intelligent camera positioning for edge finding and cutting |
With these advanced tools, you can achieve professional results while avoiding common issues like melting or uneven edges. If you're looking for tips for using your CNC router, investing in reliable brands like Signkey is a great place to start.

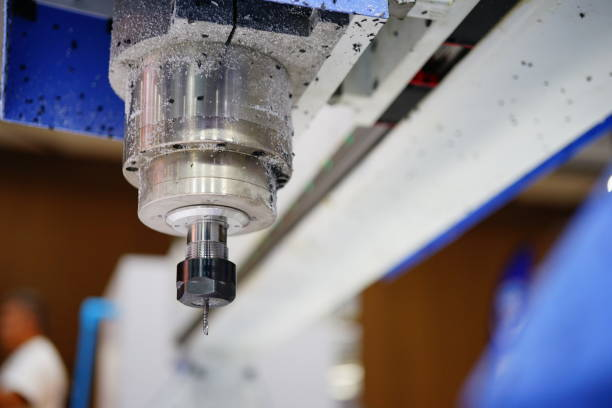

Getting the spindle speed right is one of the most important steps in avoiding melting during CNC routing. If the spindle spins too fast, it generates excessive heat, which can cause the acrylic to soften or even melt. On the other hand, cutting too slow can lead to poor surface finishes and inefficient cutting. So, how do you find the sweet spot?
Start by experimenting with lower spindle speeds.
The feed rate, or how fast the router moves through the material, plays a huge role in optimizing cutting techniques. A steady rate ensures efficient material removal while keeping heat buildup under control. If you cut at a steady rate, you'll avoid melting and achieve smooth, professional results.
For plastics like acrylic, higher feed rates are often better. They help remove chips quickly, reducing friction and keeping the material cool. However, the feed rate must match the spindle speed to maintain the proper chip load.
The depth of cut determines how much material the router removes in a single pass. Taking deep cuts might seem like a time-saver, but it can lead to overheating and uneven edges. Shallow cuts, on the other hand, reduce the strain on the router and help avoid melting.

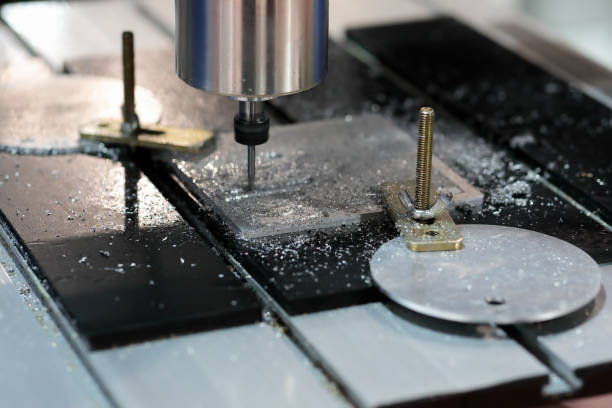

Keeping your material steady is crucial for clean and precise cuts on a CNC router. If the material shifts during machining, it can lead to uneven edges or even damage your tools. To avoid this, you need a robust clamping technique. Vacuum tables are the best option for securing your material.
Vacuum tables are especially effective for thin plastics and soft materials. They create a tight seal around the workpiece, holding it firmly in place. This method works wonders for flat pieces, as they conform better to the vacuum surface. For example, a Teflon plastic part was successfully machined using vacuum tables, achieving high precision and efficiency.
Stability is the foundation of successful CNC routing. Without it, your cuts can become uneven, and your tools might wear out faster. To ensure stability, start by conducting test cuts on scrap material. This helps you fine-tune your settings and avoid wasting valuable materials.
Regular maintenance of your CNC router is also essential. Misalignments caused by vibrations or thermal expansion can affect cutting accuracy. Keeping your machine calibrated ensures consistent performance. Additionally, pay attention to the material properties. Uniform materials are easier to machine and produce better results.
By following these tips, you'll achieve clean, precise cuts every time. Stability isn't just about the tools—it's about the entire setup working together seamlessly.
To avoid melting plastic signs on your CNC router, focus on the basics. Use the right materials, like cast acrylic, and pair them with high-quality tools. Adjust your machine settings for cutting acrylic and keep everything cool with proper techniques. Experiment with different setups to find what works best for you. Reliable tools, like those from Signkey, can make all the difference in achieving professional results.
