Author: Site Editor Publish Time: 2025-01-22 Origin: Site
Digital foam board cutting machine is a digitally controlled device used to cut foam board. This machine usually uses an oscillating knife to accurately cut various types of foam materials. The main advantage of digital foam cutting machine is its high precision and efficiency, which can quickly and accurately cut complex shapes.

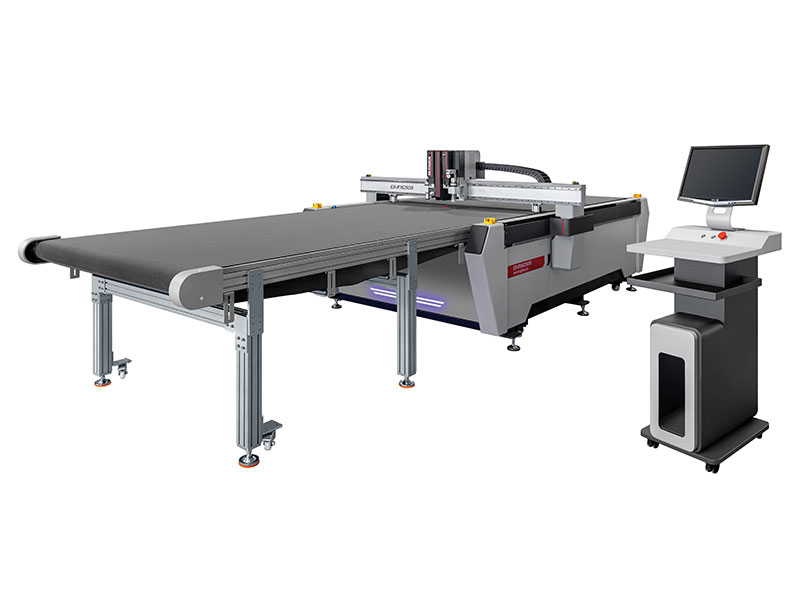

Signkey has the following models of machines for foam board cutting: ES-Z1325CCD，ES-R1625OD/ES-R1625OS/ES-R1625ODS-AT4
Model | ES-R1625OD | ES-R1625OS | ES-R1625ODS-AT4 | ES-Z1325CCD |
Working size | 1520x2500x140mm | 1300x2500x170mm | ||
Feed height | 140mm | 150mm | ||
Spindle | / | 3KW/220V water cooling | 5.5KW/220V water cooling ATC spindle | Water cooling 3KW 40,000 RPM Spindle +Oscillating tool |
Tool | Oscillating knife & drag knife | Oscillating knife & spindle | Oscillating knife & drag knife & spindle | Oscillating knife & spindle |
Oscillating knife frequency | 15000~20000rpm | / | ||
Spindle rotary speed | None | 0~40000rpm | 0~36000rpm | 0-40000rpm |
Tool diameter | None | Ø3.175,Ø4,Ø6,Ø8 | Ø3.175,Ø4,Ø6,Ø8,Ø12.7 | Ø3.175,Ø4,Ø6,Ø8 |
Driver | AC Servo | XY AC servo, Z-axis 400W AC servo A-axis 200W AC servo | ||
Control system | Signkey customized control system | Signkey CCD system | ||
Transmission | Z-ball screw direct connection; X, Y rack + planetary reducer | Z-Screw direct; X, Y-grinding rack + planetary gearbox | ||
XYZ rail | Imported linear rail | Linear guide | ||
Max. unload speed | 120m/min | 90m/min | ||
Working table | Vacuum & roll feeding | Vacuum platform with clamping slot | ||
Sorting platform | Optional Sorting platform includes the projector and projector stand | / | ||
Dust collect | Powerful dust collector | High-powered intelligent vacuum system (optional) | ||
Vacuum pump | 7.5KW air cooling | |||
Voltage | 380V,50-60Hz | AC220V or 380V,50-60Hz | ||
Machine size | 3900/5300（Sorting platform）x2500x1700mm | 3900x3000x1630mm | 2000x3100x1650mm | |
1. Digital foam board cutting machines are able to handle cutting tasks of various complex shapes, including special-shaped cutting, etc. This gives it a significant advantage in making complex models, decorations, advertising props and other fields.
2. Digital foam board cutting machines are usually equipped with dust reduction technology to minimize the generation of debris. For example, the Signkey digital cutting machine has a vacuum table, which makes the workshop environment cleaner and the operator can breathe easier.
3. Many digital foam board cutting machines have high-speed cutting capabilities, such as Signkey's machine with a maximum cutting speed of up to 10m/min. This high-speed performance makes mass production possible while reducing production time.
4. Modern digital foam board cutting machines are usually equipped with a friendly user interface and CAD integration functions, allowing users to easily perform graphic design and cutting path programming. In addition, some devices support multi-language interface switching to adapt to the needs of different language environments.
5. Digital foam board cutting machines are able to handle a variety of types of foam materials, and some devices also support the cutting of a variety of other materials, such as cardboard, leather, plastic, etc., making it more widely used in different industries.
Foam board, also known as foam core board, is a lightweight, strong board made of plastic material. It is usually composed of two layers of paper or plastic covering both sides of the foam core to form a sandwich structure. The types of foam boards that can be processed by the Digital Foam Board Cutting Machine mainly include the following:
PVC Foam Board: This is a lightweight and easy-to-process material suitable for making advertising signs, display racks, etc.
Polystyrene (XPS): This is a hard, lightweight and smooth-surfaced foam material with high density and good thermal insulation properties. Cut XPS is often used in the fields of signs, displays, packaging and model making.
Rigid Polyethylene (EPS): This is a bead grid structure foam material that is slightly softer than XPS. EPS foam is faster to cut, but the cut surface may not be as smooth as XPS. Cut EPS foam is often used to make insulation materials, cushioning packaging and some handicraft projects.
EVA Foam: This is a versatile and popular material with a variety of colors and thickness options. EVA foam is soft and has a certain elasticity, suitable for making sports mats, clothing decorations, toys and handicrafts.
EPE Foam Board: This is a semi-rigid foam material with good cushioning properties and lightness, often used for packaging protection and shockproof materials.
PE Foam Board: This is a low-density foam material, often used in projects that need to be light and sturdy, such as musical instrument cases.
Advertising and display industry: Digital foam board cutting machines are used to make advertising logos, display boards, models, display props and decorations.
Packaging industry: Digital foam board cutting machines can quickly and accurately make customized packaging solutions in the packaging industry to protect products from damage during transportation and storage.
Furniture and home decoration industry: Digital foam board cutting machines can be used in furniture manufacturing and home decoration, such as making furniture parts, decorative panels, etc.
Building and construction industry: In the construction industry, digital foam board cutting machines can efficiently cut foam materials for thermal insulation and sound insulation of building structures.
Model making and craft design: Digital foam board cutting machines are also suitable for the fields of model making and craft design. Designers can use these devices to create complex sculptures, architectural models and other creative works.
