Author: Site Editor Publish Time: 2025-10-13 Origin: Site
CNC machines transform the way you approach cutting foam signs. These machines deliver exceptional precision and efficiency, achieving tolerances as tight as ±0.005 mm. With automated cutting technologies advancing rapidly, they ensure clean, accurate results on every project. Whether you work with soft or dense foam, a CNC machine guarantees professional-quality outcomes effortlessly.
When selecting a CNC machine for cutting foam, focus on features that enhance precision and efficiency. Machines with reinforced aluminum frames provide rigidity, ensuring consistent cuts. Spindle quality plays a crucial role in processing speed and accuracy. High-precision bearings prevent overheating and extend the spindle motor's lifespan. For foam cutting, a spindle power between 1.5kw and 2.2kw works well for most foam types.
Consider the machine's axis capabilities. A 3-axis CNC machine handles basic tasks, while a 5-axis machine offers advanced movement for complex geometries. Expandable and customizable machines allow you to adapt them to your business needs. These features ensure your CNC machine delivers clean edges and accurate cuts, even on intricate designs.
The CNC Router is highly recommended for its ability to cut and shape various foam materials, including EPS, XPS, PU, and EVA. It excels in packaging production, creating protective foam inserts with smooth edges and precise dimensions. Users praise its efficiency in handling thick foam boards and intricate shapes.
Machines equipped with oscillating knives are ideal for foam cutting. These knives cut without generating heat, preserving the material's integrity. They also reduce maintenance costs by eliminating the need for frequent replacements of expensive laser components. With cutting speeds of up to 400mm/s, these machines outperform laser cutters, which typically operate at 120mm/s.
Signkey CNC machines combine precision, versatility, and efficiency, making them a top choice for foam cutting. Their CCD CNC Routers feature camera systems for precise contour cutting, ensuring clean edges and accurate dimensions. These machines handle a wide range of foam types and thicknesses, making them suitable for signage and display projects.
With a global presence and reliable customer support, Signkey provides high-quality CNC solutions tailored to your needs. Whether you're creating foam signs or protective inserts, their machines deliver professional results every time.

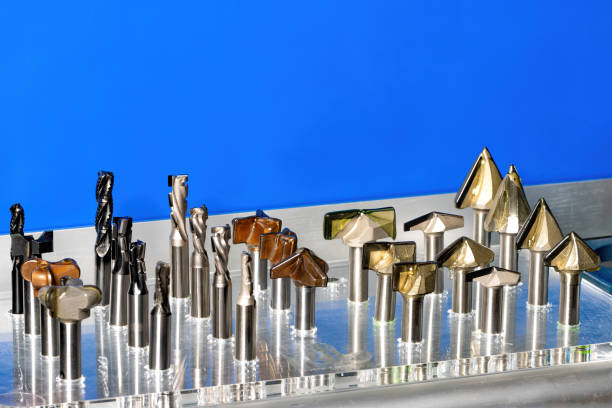

Choosing the right router bit is essential for achieving clean and precise cuts in foam materials. Different types of bits are optimized for specific tasks, ensuring efficiency and quality. Here are some of the most effective router bits for foam cutting:
Straight Flute Bits: These are perfect for general foam cutting applications, offering straightforward cuts for simple designs.
Upcut Spiral Bits: These bits pull chips upward, reducing heat buildup and ensuring efficient chip evacuation. They work well with softer foam materials.
Downcut Spiral Bits: These push chips downward, creating a smoother top surface and preventing chipping or tear-out.
Compression Bits: Combining upcut and downcut flutes, these bits excel at cutting laminated foam or materials with varying densities.
Ball Nose Bits: Ideal for 3D carving and contouring, these bits create rounded edges and intricate textures.
V-Bits: Perfect for detailed carving and chamfering, allowing for precise angular cuts.
Tapered Ball Nose Bits: These are excellent for detailed 3D carvings and fine surface contours.
Fish Tail Bits: Versatile for general foam cutting, they balance cutting speed and surface finish.
Diamond-Coated Bits: Designed for harder foam materials, these bits offer extended tool life and clean cuts.
Each type of bit serves a unique purpose, helping you tailor your CNC router setup to meet specific project requirements.
Selecting the right router bit for foam cutting involves understanding your material and project needs. Consider the following tips to make an informed choice:
Tool Type | Description |
Foam Cutter | Essential for cutting flat and curved surfaces on all foam types. |
Electric Knife | Ideal for thicker foam, providing precise cuts for dense materials like memory foam. |
Hot Wire Cutter | Melts through foam for clean cuts, perfect for intricate designs. |
Scissors | Useful for cutting thin foam or neoprene sheets, great for detailed crafting projects. |
Rotary Cutter | Excellent for precision cutting, often used in quilting and crafting for intricate designs. |
Proper maintenance extends the life of your router bits and ensures consistent performance. Follow these practices to keep your bits in top condition:
Set the PSI to 10-20 when cutting foam to minimize wear on the bits.
Clean your bits regularly to remove debris and foam residue.
Lubricate the bits to prevent rust and ensure smooth operation.
Inspect the bits for dullness or damage after each use. Replace worn-out bits promptly to maintain cutting quality.
By adopting these maintenance protocols, you can maximize the efficiency of your CNC router and achieve professional results in foam cutting projects.
Feed rates and spindle speeds are critical for achieving clean and precise cuts when working with foam. Feed rate refers to how quickly the material moves through the cutting tool, while spindle speed measures the revolutions per minute (RPM) of the cutting tool. Both settings must align with the foam's density and thickness to prevent material damage or tool wear.
For soft foams, higher feed rates and moderate spindle speeds work best. Denser materials, like foam core boards, require slower feed rates to maintain control and avoid overheating. Adjusting these parameters ensures smooth cuts and prolongs the life of your router bits.
To optimize your CNC router for cutting foam, follow these guidelines:
Set spindle speeds between 10,000 and 20,000 RPM, depending on the foam's density.
Use feed rates ranging from 100 to 400 inches per minute for soft foams. Reduce the speed for cutting foam core or denser materials.
Limit the cutting depth to no more than 50% of the bit's diameter. This minimizes heat buildup and ensures proper chip removal.
Monitor the cutting process closely. Adjust settings if you notice signs of stress, such as melting or rough edges.
Research using the Design of Experiments (DOE) method highlights the importance of balancing these variables. It shows that optimal settings improve energy absorption and reduce peak loads, which is essential for maintaining the foam's structural integrity during machining.
Achieving smooth edges and surfaces on foam signs enhances their overall appearance.
Technique | Description |
Sanding | Using medium grit sandpaper (120) to smooth edges and surfaces of Kapa-line foam. |
Impressing | Creating textures using tools like a small wire brush or custom-made impressing tools from Super Sculpey. |
Creating Textures | Techniques for making impressions in foam surfaces to simulate materials like weathered concrete. |
Experimenting with these techniques ensures your foam signs have clean edges and visually appealing textures.
Painting foam signs adds vibrancy and durability. Begin by applying a primer to seal the foam surface. This step prevents paint absorption and ensures an even finish. Acrylic paints work best for foam signs due to their quick drying time and compatibility with foam materials. Use a soft brush or spray paint for smooth application.
For added protection, coat the painted foam with a clear sealant. This layer shields the surface from moisture and UV damage, extending the sign's lifespan. When working with foam letters or intricate designs, opt for a fine-tip brush to reach tight spaces. Proper painting and coating techniques transform plain foam into professional-looking signage.
When working with foam using a CNC machine, safety should always come first. Foam cutting can produce fine particles and fumes that may pose health risks if not managed properly. Follow these essential safety tips to protect yourself and your workspace:
Wear protective gear, including safety goggles and a dust mask, to shield your eyes and lungs from foam particles.
Ensure proper ventilation in your workspace to reduce exposure to fumes.
Use a vacuum system to collect debris and maintain a clean environment.
Regularly inspect your CNC router for wear and tear to prevent accidents.
The right software can simplify your foam cutting projects and enhance your results. Foamworks is a popular choice for controlling CNC machines. It allows you to cut various shapes and control multiple motors, making it ideal for foam signage projects.
For more advanced designs, consider using CAD software like AutoCAD or Fusion 360. These programs offer precise modeling tools, enabling you to create intricate foam designs. Pairing these tools with your CNC router ensures professional-quality outcomes.
Expanding your knowledge about foam cutting and CNC design is easier with the right resources. Trusted manufacturers like Signkey provide durable machines such as CCD CNC routers, which can help you get perfect foam sign. Online tutorials and forums are excellent for learning new techniques. Websites like CNCZone and YouTube host step-by-step guides for beginners and professionals alike. Foamworks software also offers user-friendly documentation to help you get started.
Choosing the right CNC machines, tools, and techniques ensures precision and efficiency in foam sign cutting. These machines simplify the process, delivering professional results with ease. Start your journey with trusted options like Signkey CNC routers. Their advanced features and reliability make them an excellent choice for creating high-quality foam signs.
