Creating acrylic signs with a CNC router is all about precision. You'll need to focus on every detail, from choosing the right material to ensuring your router settings are spot on. Why does precision matter so much? Industries are increasingly relying on CNC technology for automated manufacturing, especially for tasks like detailed cutting and engraving.

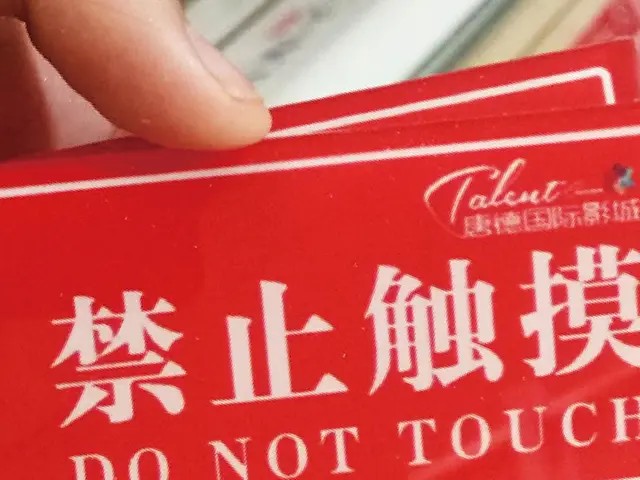

When it comes to acrylic sign making, picking the right material is the first step to success. Not all acrylic sheets are created equal, and understanding their differences can save you time and frustration.
You'll often hear about cast and extruded acrylic, but what's the difference? Cast acrylic offers superior optical clarity and UV stability, making it ideal for outdoor signs. It's also more scratch-resistant and produces cleaner edges during flame polishing. On the other hand, extruded acrylic is easier to machine and costs less, but it doesn't perform as well under direct sunlight.
Here's a quick comparison to help you decide:
Properties/Features | Cast Acrylic | Extruded Acrylic |
UV Stability | Excellent | Good |
Scratch Resistance | High | Moderate |
Flame Polishing | Cleaner edges, time-consuming | Easier, but less clean |
Optical Clarity | 90-93% light transmission | 85-90% light transmission |
Formability Temperature Range | 340°F to 380°F | 290°F to 320°F |
If you need a durable, high-quality finish, cast acrylic is your best bet. For simpler projects, extruded acrylic works just fine.
Thickness matters more than you might think. Thinner sheets, like 1/8-inch acrylic, are great for lightweight indoor signs. For outdoor signs or larger projects, go for thicker sheets—1/4-inch or more. Thicker acrylic not only lasts longer but also resists warping and cracking under pressure.

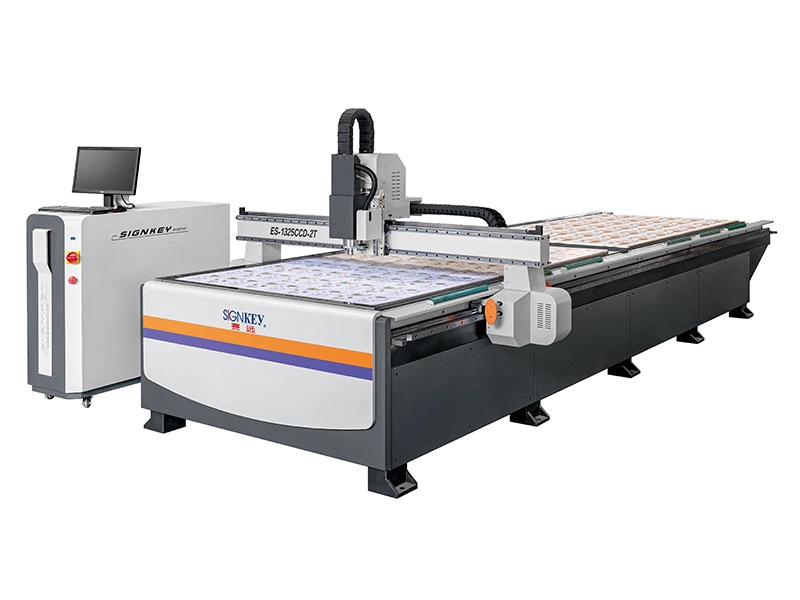

Setting up your CNC router properly is the foundation for achieving clean, precise cuts on acrylic. This step involves configuring the machine's settings, securing the material, and testing on scrap pieces to ensure everything runs smoothly. Let's break it down step by step.
Getting the right settings for your CNC router is crucial when cutting acrylic. Incorrect configurations can lead to melting, chipping, or uneven edges. Follow these guidelines to set up your machine for success:
Feed Rate: Adjust the feed rate based on your bit size. For acrylic, a range of 75–300 IPM (inches per minute) works well. Smaller bits require slower feed rates, while larger bits can handle faster speeds.
RPM (Spindle Speed): Set the spindle speed to at least 18,000 RPM. This ensures smooth cuts without overheating the acrylic.
Cutting Depth: Limit the cutting depth to about half the diameter of your bit.
Start with a Ramp: Begin your cuts with a ramping motion instead of plunging straight down. This reduces stress on the material and minimizes distortion.
Here’s a quick reference table for feed rates and cutting depths based on tool diameter:
Tool Diameter | Soft Plastics | Hard Plastics | Acrylic |
3mm | 0.1–0.15 | 0.15–0.2 | 0.15–0.2 |
6mm | 0.2–0.3 | 0.25–0.3 | 0.25–0.3 |
10mm | 0.2–0.3 | 0.25–0.3 | 0.25–0.3 |
By fine-tuning these settings, you'll achieve smoother finishes, better precision, and longer tool life.
Properly securing your acrylic sheet is just as important as configuring your CNC router. A poorly secured sheet can shift during cutting, ruining your design and potentially damaging the machine. Here's a reliable method to keep your material in place:
Clamps: Use clamps to hold the edges of the acrylic sheet. Make sure they don't interfere with the cutting path.
Vacuum Table: If your CNC router has a vacuum table, use it to create a strong suction that holds the acrylic securely.
Before you start cutting your main piece, test your settings on a scrap piece of acrylic. This step helps you fine-tune your configurations and avoid costly mistakes. Here's how to do it:
Power Adjustments: Increase the spindle speed if the edges look rough or decrease it if the acrylic starts to melt.
Speed Adjustments: Slow down the feed rate for thicker materials or speed it up for thinner sheets.
Cut Quality: Inspect the edges of the scrap piece. Smooth, chip-free edges indicate optimal settings.
Cooling and Debris: Use air assist or a cooling system to prevent heat buildup and clear away debris during the test.
Parameter | Recommendations |
Power Adjustments | Adjust spindle speed to avoid melting or rough edges. |
Speed Adjustments | Match feed rate to material thickness for cleaner cuts. |
Cooling and Debris | Optimize air assist to improve cutting efficiency. |
Before you start cutting acrylic, you need a precise design file. This file acts as the blueprint for your CNC router, guiding it to create the exact shapes and details you want. Using CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software makes this process seamless.

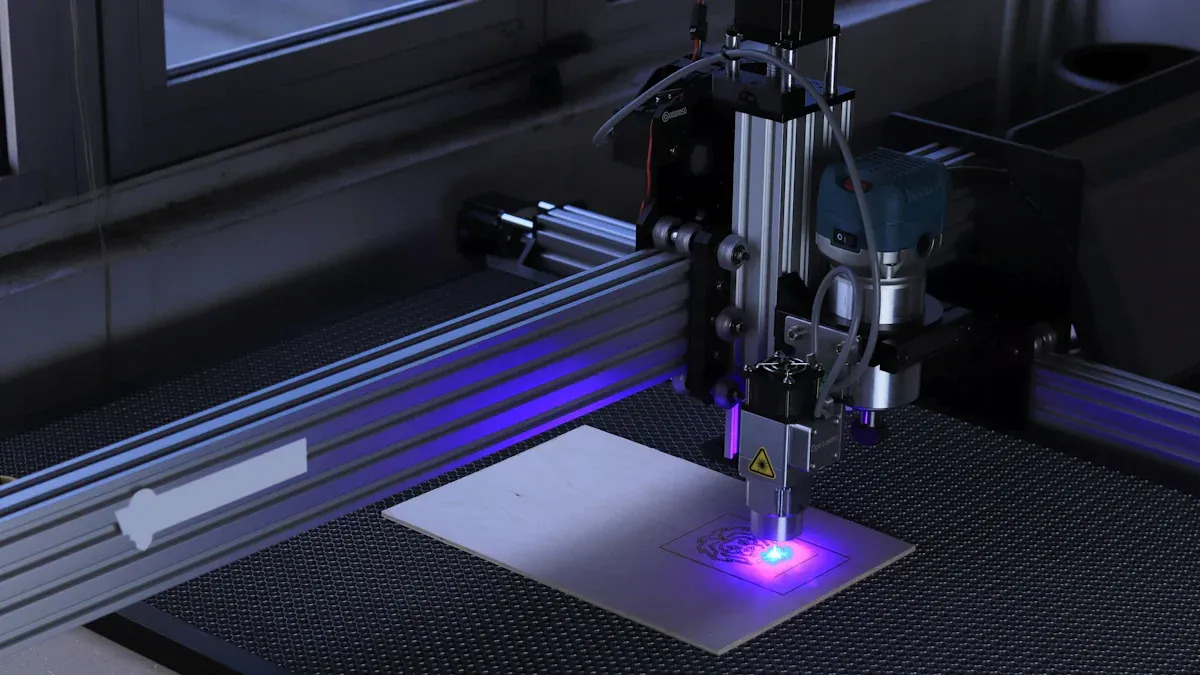

While the CNC router is cutting acrylic, you need to monitor the process closely. This ensures the cuts are clean and precise, and it helps you catch any issues early.
Here are some techniques and tools to help you maintain precision:
Technique | Description |
Cutting Force Measurement | Use dynamometers to monitor the forces acting on the cutting tool. This helps you adjust settings for smoother cuts. |
Dimensional Measurement Tools | Tools like calipers and micrometers ensure the dimensions of the cut match your design. |
Surface Roughness Testers | Check the smoothness of the edges to validate the quality of the cut. |
Non-Destructive Testing Methods | Evaluate the integrity of the acrylic without causing damage. |
After cutting acrylic with a CNC router, you'll often notice burrs or rough edges. These imperfections can affect the look and feel of your sign. Removing them is simple if you use the right tools and techniques. Start with a deburring tool or fine-grit sandpaper to smooth out the edges. For a polished finish, try flame polishing. This method uses a controlled flame to melt the surface slightly, leaving it glossy and smooth.
Once the edges are polished, it's time to clean and enhance the acrylic surface. Dust and fingerprints can dull the appearance of your sign, so cleaning is essential. Use a microfiber cloth and a mild acrylic cleaner to wipe down the surface. Avoid harsh chemicals like ammonia, as they can cause clouding.
The final touches bring your acrylic sign to life. Adding paint, vinyl, or LED backlighting can transform a simple design into a stunning display.
You're dealing with sharp tools, flying debris, and potentially loud environments, so wearing the right protective gear is non-negotiable. Start with safety glasses that meet ANSI Z87.1 standards. For noisy environments, add hearing protection like earmuffs or earplugs to your gear.
Don't forget gloves to protect your hands. A dust mask or respirator is also a good idea, especially when cutting acrylic, as it can release fine particles into the air.
After every use, clean the machine to remove dust and debris. This simple step prevents buildup that could interfere with performance. Regularly lubricate moving parts as specified in the machine's manual to keep everything running smoothly.
Inspect belts and other components for wear and tear. Replacing aging parts before they fail can save you from costly downtime. Scheduled inspections and software diagnostics can also help you catch potential issues early.
Using a CNC router for acrylic sign making might seem challenging at first, but breaking it into simple steps makes it manageable. From choosing the right acrylic material to setting up your router and perfecting your cuts, every step matters. Don't forget to polish and finish your signs for that professional touch!
