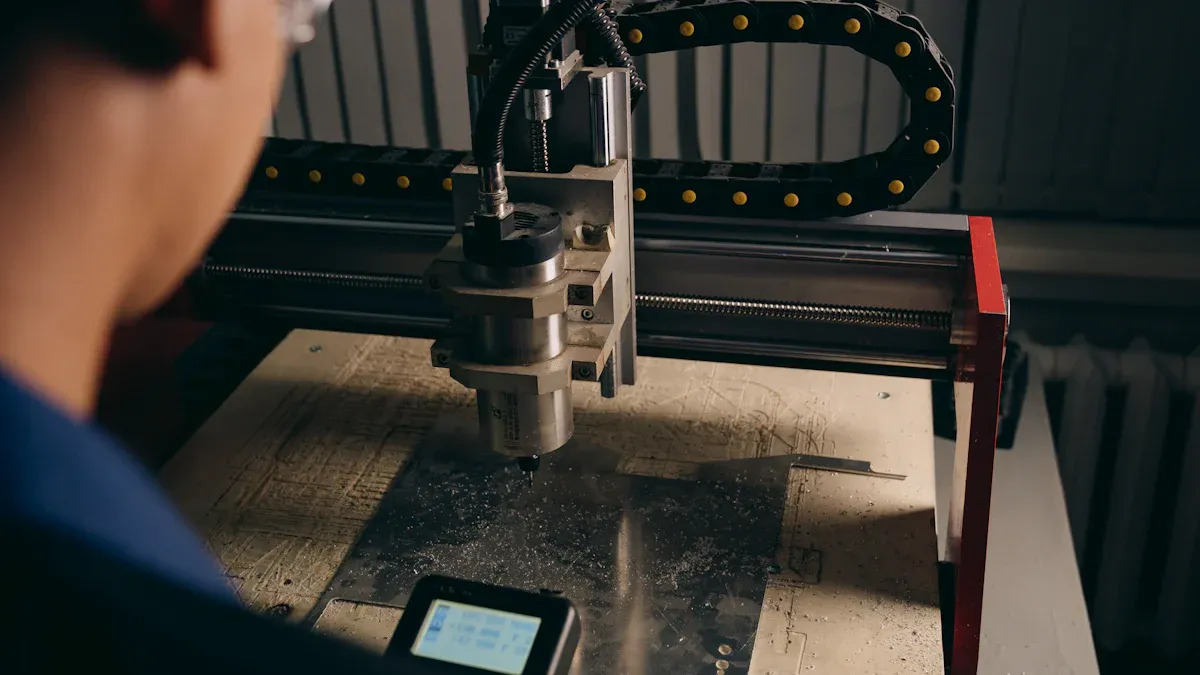

Setting up a contour cutting CNC router requires attention to detail and a clear understanding of key parameters. To achieve precise edge following, you need to configure essential settings. Start by adjusting the spindle speed to match the material and tool, measured in revolutions per minute (RPM). Next, set an appropriate feed rate, which controls how fast the cutting tool moves through the material. Ensure the plunge rate, or the vertical entry speed of the tool, is optimized to protect its health. Finally, determine the depth of cut, which defines how much material the tool removes in one pass. Each step plays a role in ensuring accuracy and preventing errors during operation.
Precision in setup not only improves cutting quality but also extends the life of your router and tools.

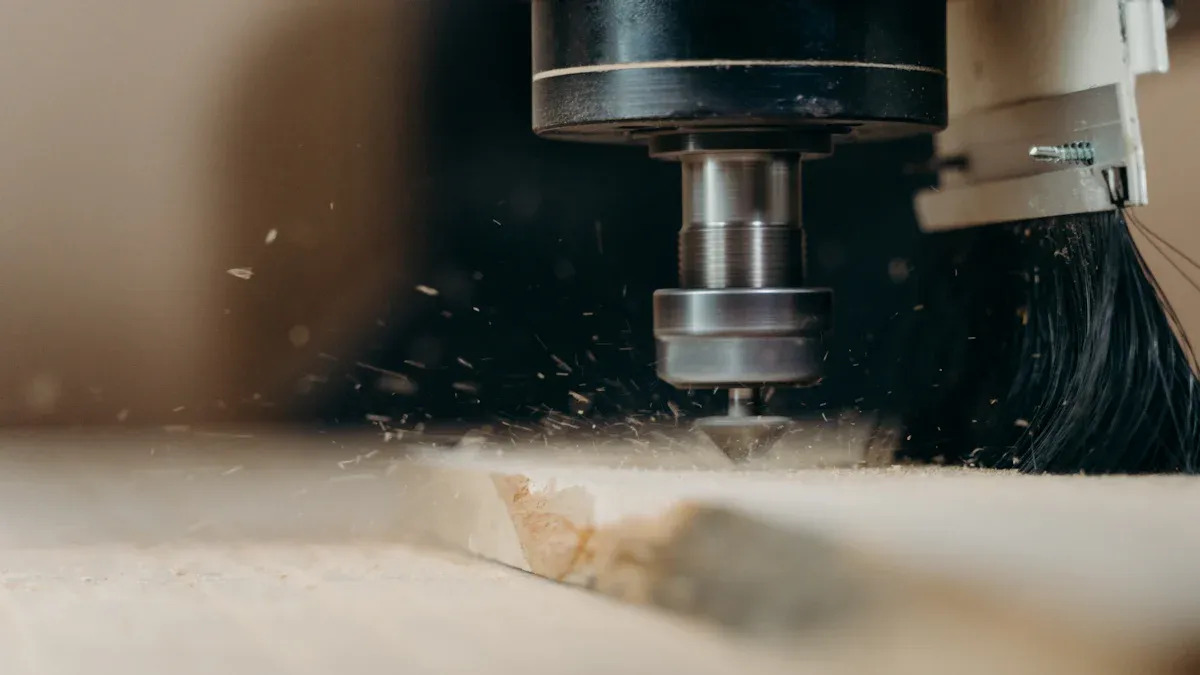

Choosing the correct router bits and tools is essential for achieving precise and efficient results with your CNC router. Each material you work with requires specific bits to ensure optimal performance. For example, soft materials like foam or plastic benefit from single-flute bits, which allow better chip removal. On the other hand, multi-flute bits are ideal for harder materials, as they provide smoother finishes.
When selecting bits, consider the following factors:
Material Compatibility: Match the bit to the material for clean cuts and reduced wear.
Number of Flutes: Single-flute bits work well for soft materials, while multi-flute bits are better for detailed work.
Cutting Edge and Coating: High-quality coatings improve durability and cutting performance.
Bit Diameter and Cutting Length: Smaller bits are perfect for intricate designs, while larger bits offer stability for broader cuts.
Feed Rate and Spindle Speed Compatibility: Ensure the bit can handle the speed and feed rate of your CNC router to avoid overheating.
Bit Shank Size: Choose a shank size that fits securely in your router for stability.
Cost vs. Quality: Investing in premium bits may save money in the long run by reducing replacements.
By carefully selecting the right tools, you can enhance the precision of your contour cutting CNC router and extend the lifespan of your equipment.

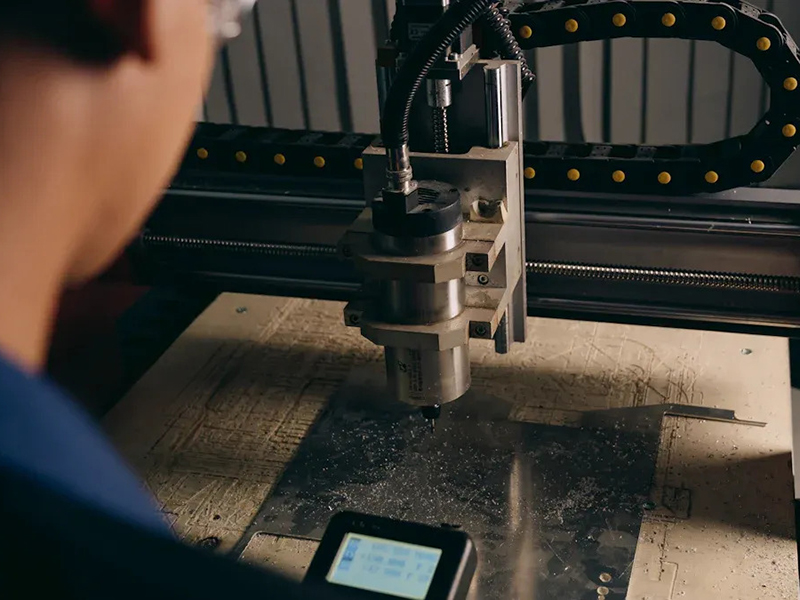

Calibration is a critical step in preparing your CNC router for accurate contour cutting. Proper calibration ensures that the machine moves precisely along the X, Y, and Z axes, reducing errors and improving the quality of your cuts. Start by checking the alignment of the router's components, including the spindle, gantry, and bed. Use a dial indicator or similar tool to measure any deviations.
Studies show that CNC routers can achieve remarkable accuracy, with deviations as small as ±0.01 mm when properly calibrated. This level of precision allows you to mill complex contours with confidence.
To further refine calibration, follow these steps:
Check Axis Movement: Ensure the router moves smoothly along all axes without binding or resistance.
Test Geometric Accuracy: Use a test pattern to evaluate circularity, flatness, and alignment.
Adjust Settings: Fine-tune the machine's software settings to correct any detected misalignments.
Verify Results: Run a small test cut to confirm the adjustments have improved accuracy.
Calibration standards, such as ISO 13041-6:2009, provide guidelines for evaluating geometric inaccuracies in CNC machines. These standards help you maintain consistent performance over time.
Regular calibration not only improves cutting precision but also prevents wear and tear on your router. By dedicating time to this process, you ensure your CNC router operates at its best, delivering high-quality results every time.
Before you begin cutting, you need to import and prepare your design file. This step ensures that your CNC router follows the intended contour accurately. Start by creating or obtaining a vector-based design file in formats like DXF, SVG, or AI. These formats are compatible with most CNC software and allow for precise contour mapping.
Once you have the file, follow these steps to prepare it:
Check for Errors: Inspect the design for gaps, overlapping lines, or unnecessary nodes. These issues can cause the router to deviate from the intended path.
Simplify Complex Shapes: Reduce the number of nodes in intricate designs to improve processing speed and accuracy.
Scale the Design: Adjust the size of the design to match the dimensions of your material.
Set the Origin Point: Define the starting point for the router to ensure proper alignment with the material.
Convert to Tool Paths: Use your CNC software to generate tool paths from the design. This step translates the vector file into instructions the router can follow.
Tip: Always preview the tool paths in your CNC software. This allows you to identify potential issues before running the machine.
CNC routers excel at contouring various shapes. By using computerized programming to generate 3D tool paths, you can produce complex shapes without needing physical models. This efficiency highlights the power of CNC technology in modern manufacturing.
Configuring the cutting parameters is crucial for achieving precision with your contour cutting CNC router. These parameters determine how the router interacts with the material, affecting both the quality of the cut and the lifespan of your tools.
Here are the key parameters to configure:
Tool Radius: Ensure the tool radius is less than or equal to the minimum curvature radius on the concave contour. This prevents processing issues and ensures smooth cuts.
Spindle Speed: Calculate the spindle speed based on the cutting speed and the diameter of the workpiece. Proper speed enhances tool durability and cutting efficiency.
Feed Speed: Select a feed speed that balances machining accuracy with surface roughness requirements. A slower feed speed improves precision, while a faster speed increases productivity.
Depth of Cut: Match the depth of cut to the machining allowance. This approach optimizes production efficiency without compromising quality.
Example: For inner contour surfaces, the milling cutter radius should typically be 0.8 to 0.9 times the minimum radius of curvature. This ratio ensures smooth transitions and reduces tool wear.
When setting these parameters, consider the material you are working with. Softer materials may require higher spindle speeds and shallower cuts, while harder materials demand slower speeds and deeper cuts. Testing different configurations can help you find the optimal settings for your specific project.
Pro Tip: Save your parameter settings for future use. This saves time and ensures consistency across similar projects.
By carefully configuring these parameters, you can maximize the precision and efficiency of your CNC router. This attention to detail not only improves the quality of your work but also extends the life of your tools and equipment.
Testing your CNC router before starting full production ensures accuracy and prevents costly errors. A test cut allows you to evaluate how well the router follows the intended contour and identifies areas for improvement. Begin by selecting a small section of your design or creating a simple test pattern. Use scrap material that matches the properties of your final material to simulate real cutting conditions.
Different test curve types can help you assess contour accuracy effectively. The table below outlines common test patterns and their impact:
Test Curve Type | Description | Effect on Contour Accuracy |
Steady Increase | Curvature increases steadily | Significant reduction in contour error |
Periodic Variation | Curvature varies periodically | Moderate improvement in accuracy |
Sudden Spike | Abrupt change in curvature | Dramatic suppression of local contour error with modest time increase |
Tip: Always inspect the test cut visually and measure the dimensions with calipers or other precision tools. This helps you confirm whether the router is following the design accurately.
Running test cuts not only validates the machine's performance but also builds confidence in your setup. By identifying and addressing issues early, you save time and materials during production.
Fine-tuning your CNC router settings ensures optimal performance and precision. Adjustments to parameters like feed rate, spindle speed, and depth of cut can significantly improve the quality of your work. Start by reviewing the results of your test cut and identifying areas where adjustments are needed.
Use benchmarks to guide your fine-tuning process. The table below highlights key performance indicators to focus on:
Performance Indicator | Description |
Accuracy | Ensures cuts meet design specifications, reducing discrepancies. |
Consistency | Maintains uniformity across production runs, producing identical parts. |
Surface Finish | Minimizes errors leading to higher-quality finishes and clean cuts. |
Efficiency | Reduces material waste, saving costs and improving resource use. |
Tool Life | Reduces wear on tools, leading to longer life and less frequent replacements. |
Quality Control | Ensures parts meet quality standards, enhancing customer satisfaction. |
Safety | Minimizes risks of accidents by ensuring correct machine operation. |
Pro Tip: Adjust one parameter at a time and test the results. This method helps you pinpoint the changes that improve performance without introducing new issues.
Fine-tuning is an ongoing process. As you work with different materials and designs, revisit your settings to maintain precision and efficiency. By prioritizing these adjustments, you maximize the capabilities of your contour cutting CNC router and achieve consistent, high-quality results.
Maintaining your CNC router regularly ensures consistent precision and extends its lifespan. A well-maintained machine delivers high-quality results and reduces unexpected downtime. Follow a structured maintenance schedule to keep your router in optimal condition.
Inspect the machine daily for wear and tear. Check the coolant level and ensure safety devices are functioning properly.
Clean the control cabinet's filter weekly and inspect the slideways for smooth operation.
Adjust limit switches monthly and examine electrical wiring for potential issues.
Perform axis calibration quarterly and inspect hydraulic systems for leaks or damage.
Schedule annual spindle maintenance and check ball screws for wear.
Regular maintenance can increase the lifespan of your CNC router by 30-50%. It also improves production quality and reduces the total cost of ownership. The table below outlines a recommended maintenance schedule:
Frequency | Maintenance Tasks |
Daily | Inspect covers, guards, and safety devices; Check coolant level and quality. |
Weekly | Inspect and adjust machine slideways; Clean control cabinet's filter. |
Monthly | Adjust limit switches; Inspect electrical wirings and motor brushes. |
Quarterly | Perform axis calibration; Inspect hydraulic systems. |
Annually | Schedule professional spindle maintenance; Inspect ball screws for wear. |
By adhering to this schedule, you protect your investment and ensure your contour cutting CNC router operates at peak performance.
Avoiding errors during operation is essential for maintaining precision and preventing damage to your CNC router. Many mistakes stem from improper setup or neglecting key operational practices. You can minimize these issues by following a few simple guidelines.
Always verify the cutting parameters before starting a job. Incorrect spindle speed or feed rate can lead to poor cuts and tool wear.
Secure the material firmly to prevent movement during cutting. Loose materials can cause inaccuracies and damage the router.
Inspect the design file for errors like overlapping lines or gaps. These issues can disrupt the cutting process.
Run a test cut to confirm the router is following the intended contour accurately. This step helps identify problems early.
Monitor the machine during operation. Pay attention to unusual noises or vibrations, which may indicate mechanical issues.
By avoiding these common errors, you ensure your CNC router delivers precise results consistently. Proper operation also reduces the risk of costly repairs and downtime, keeping your production schedule on track.
